Home
Our Product Lines
ecomate Connectors
ecomate Aquarius
8-3 Position
INLINE RECEPTACLES

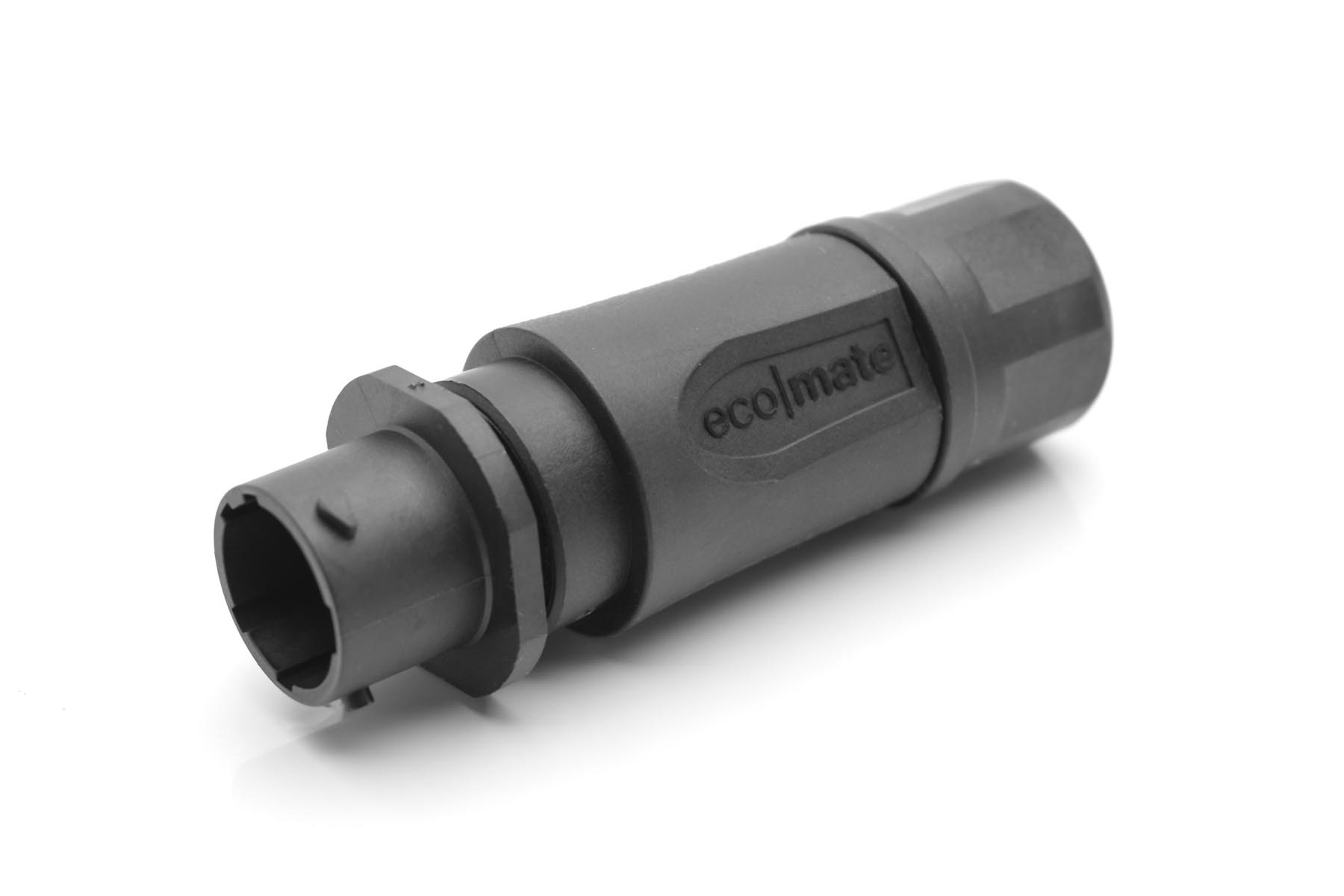

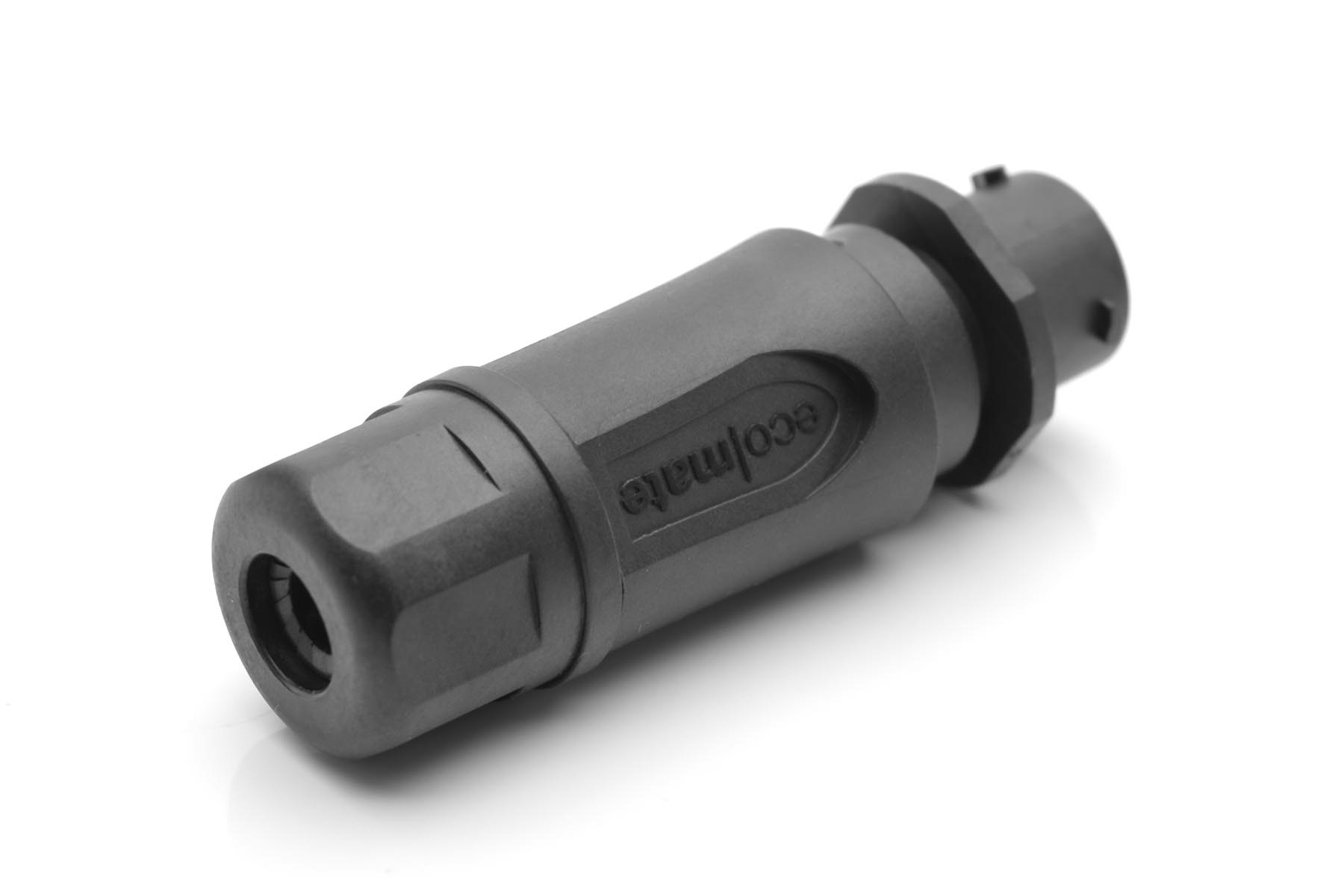

RTS1BS8N3P Receptacle, Inline, 3 positions, size 8, pin contact, silicone rubber seal. Comparable to PN# UTS1JC8E3P
RTS1BS8N3P Receptacle, Inline, 3 positions, size 8, pin contact, silicone rubber seal. Comparable to PN# UTS1JC8E3P
RTS1BS8N3P Receptacle, Inline, 3 positions, size 8, pin contact, silicone rubber seal. Comparable to PN# UTS1JC8E3P
$0.00
Receptacle, Inline, 3 positions, size 8, pin contact, silicone rubber seal
PART NUMBER:
RTS1BS8N3P
Datasheet
:
View / Download
3D Model
:
View/Download
3
Circular
69
7
Plastic
SPECIFICATIONS:
No. of Contacts:
3
Shell Size:
8
Amperage:
7A
Contact size:
20
AWG:
20-30
Volt:
250
Contact Pin or Socket:
Pin
IP Rating:
IP67/IP69k (in mated condition)
Housing Material:
Thermoplastic UL94 V-0
Temperature Range:
-40° C to +125°C
Rohs Compliant:
TRUE
Salt Spray:
>500h
Male or Female:
Male
Mating Parts:
RTS6BS8N3S
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Inline, 3 Position, Male, Shell Size 8, with Back Shell, Range 1.5~6.5 mm
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
250
Connectors~Receptacles~Inline|Connectors~Pin (Male)
