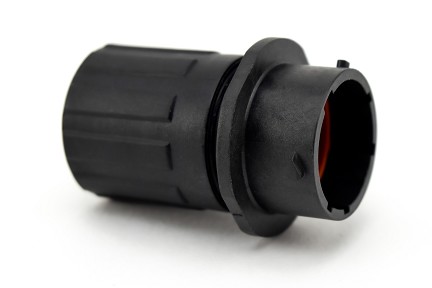

RTS1BS18N8PHEC03 Size 18 Inline Receptacle with Endcap, Male, 8 Positions, Contact Size 12 (2.5mm), Silicone Rubber Seal
RTS1BS18N8PHEC03 Size 18 Inline Receptacle with Endcap, Male, 8 Positions, Contact Size 12 (2.5mm), Silicone Rubber Seal

RTS1BS18N8PHEC03 Size 18 Inline Receptacle with Endcap, Male, 8 Positions, Contact Size 12 (2.5mm), Silicone Rubber Seal

$0.00
Inline Receptacle w Endcap
PART NUMBER: RTS1BS18N8PHEC03
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Shell Size: 18
  • No. of Contacts: 8
  • Contact Size: 2.5mm
  • Amperage: 23A
  • Wire Range: 14-12
  • Voltage: 500
  • Contact Pin or Socket: Pin
  • Housing Material: Thermoplastic UL94 V-0
  • IP Rating: IP67 and IP69K (in mated condition)
  • Temperature Range: -40°C to +125°C
  • Rohs Compliant: TRUE
  • Gender: Male
  • Mating Part(s): RTS6BS18N8S03, RTS6BS18N8SHEC03
