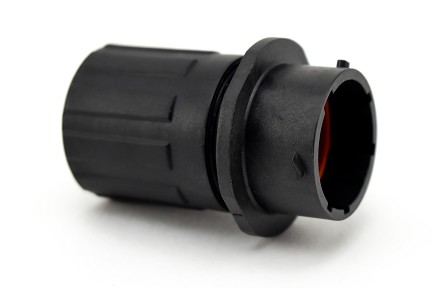

  7. RTS1BS16N4SHEC03 Size 16 Inline Receptacle with Endcap, Female, 4 Positions, Contact Size 8 (3.6mm), Silicone Rubber Seal
RTS1BS16N4SHEC03 Size 16 Inline Receptacle with Endcap, Female, 4 Positions, Contact Size 8 (3.6mm), Silicone Rubber Seal
RTS1BS16N4SHEC03 Size 16 Inline Receptacle with Endcap, Female, 4 Positions, Contact Size 8 (3.6mm), Silicone Rubber Seal

RTS1BS16N4SHEC03 Size 16 Inline Receptacle with Endcap, Female, 4 Positions, Contact Size 8 (3.6mm), Silicone Rubber Seal

$0.00
Inline Receptacle w Endcap
PART NUMBER: RTS1BS16N4SHEC03
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Shell Size: 16
  • No. of Contacts: 4
  • Contact Size: 8 (3.6mm)
  • Amperage: 45A
  • Wire Range: 10-12
  • Voltage: 600
  • Contact Pin or Socket: Socket
  • Housing Material: Thermoplastic UL94 V-0
  • IP Rating: IP67 and IP69K (in mated condition)
  • Temperature Range: -40°C to +125°C
  • Rohs Compliant: TRUE
  • Gender: Female
  • Mating Part(s): RTS6BS16N4P03, RTS6BS16N4PHEC03
Receptacle, Inline, 4 Position, Female, Shell Size 16, Silicone Seal, and End Cap with Individual Wire Sealing

Related Items

CA-4012-59 Sealing Plug, White, Size 12 (2.5mm), Size 8 (3.6mm)
CA-4012-59 Sealing Plug, White, Size 12 (2.5mm), Size 8 (3.6mm)
REQUEST A QUOTE
MS10A23S 3.6mm Socket Contact, Silver Plated, Machined, 45A, Wire Range 12-10 AWG
MS10A23S 3.6mm Socket Contact, Silver Plated, Machined, 45A, Wire Range 12-10 AWG
REQUEST A QUOTE
RTS016DCG Dust cap for Receptacle, Size 16. Comparable to PN# UTS16DCG
RTS016DCG Dust cap for Receptacle, Size 16. Comparable to PN# UTS16DCG
REQUEST A QUOTE
RTS16CCRG Coding color ring, Green, size 16. Comparable to PN# UTS616CCRG
RTS16CCRG Coding color ring, Green, size 16. Comparable to PN# UTS616CCRG
REQUEST A QUOTE
RTS16CCRR Coding color ring, Red, size 16. Comparable to PN# UTS616CCRR
RTS16CCRR Coding color ring, Red, size 16. Comparable to PN# UTS616CCRR
REQUEST A QUOTE
RTS16CCRY Coding color ring, Yellow, size 16. Comparable to PN# UTS616CCRY
RTS16CCRY Coding color ring, Yellow, size 16. Comparable to PN# UTS616CCRY
REQUEST A QUOTE
RTS1BS16N4S03 Receptacle, Inline, 4 positions, size 16, socket contact, silicone rubber seal
RTS1BS16N4S03 Receptacle, Inline, 4 positions, size 16, socket contact, silicone rubber seal
REQUEST A QUOTE
RTS6BS16N4P03 Straight plug with cord grip, 4 positions, size 16, pin contact, silicone rubber seal
RTS6BS16N4P03 Straight plug with cord grip, 4 positions, size 16, pin contact, silicone rubber seal
REQUEST A QUOTE
RTS6BS16N4PHEC03 Straight plug with endcap, 4 positions, size 16, pin contact
RTS6BS16N4PHEC03 Straight plug with endcap, 4 positions, size 16, pin contact
REQUEST A QUOTE
