Home
Our Product Lines
ecomate Connectors
ecomate Aquarius
16-19 Position
INLINE RECEPTACLES

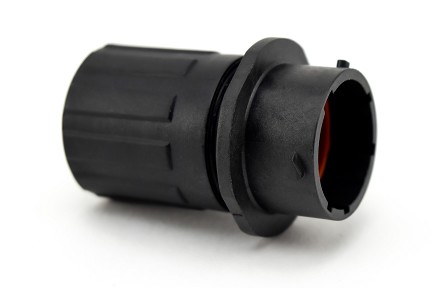

RTS1BS16N19SHEC03 Size 16 Inline Receptacle with Endcap, Female, 19 Positions, Contact Size 16 (1.6mm), Silicone Rubber Seal
RTS1BS16N19SHEC03 Size 16 Inline Receptacle with Endcap, Female, 19 Positions, Contact Size 16 (1.6mm), Silicone Rubber Seal
RTS1BS16N19SHEC03 Size 16 Inline Receptacle with Endcap, Female, 19 Positions, Contact Size 16 (1.6mm), Silicone Rubber Seal
$0.00
Inline Receptacle w Endcap
PART NUMBER:
RTS1BS16N19SHEC03
Datasheet
:
View / Download
3D Model
:
View/Download
19
Circular
69
13
Metal
SPECIFICATIONS:
Shell Size:
16
No. of Contacts:
19
Contact Size:
16
Amperage:
13A
Wire Range:
14-24
Voltage:
500
Contact Pin or Socket:
Socket
Housing Material:
Thermoplastic UL94 V-0
IP Rating:
IP67 and IP69K (in mated condition)
Temperature Range:
-40°C to +125°C
Rohs Compliant:
TRUE
Gender:
Female
Mating Part(s):
RTS6BS16N19P03, RTS6BS16N19PHEC03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Inline, 19 Position, Female, Shell Size 16, Silicone Seal, and End Cap with Individual Wire Sealing
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
500
Connectors~Receptacles~Inline|Connectors~Socket (Female)
