Home
Our Product Lines
ecomate Connectors
ecomate Aquarius
16-13 (3+10) Position Mix
INLINE RECEPTACLES

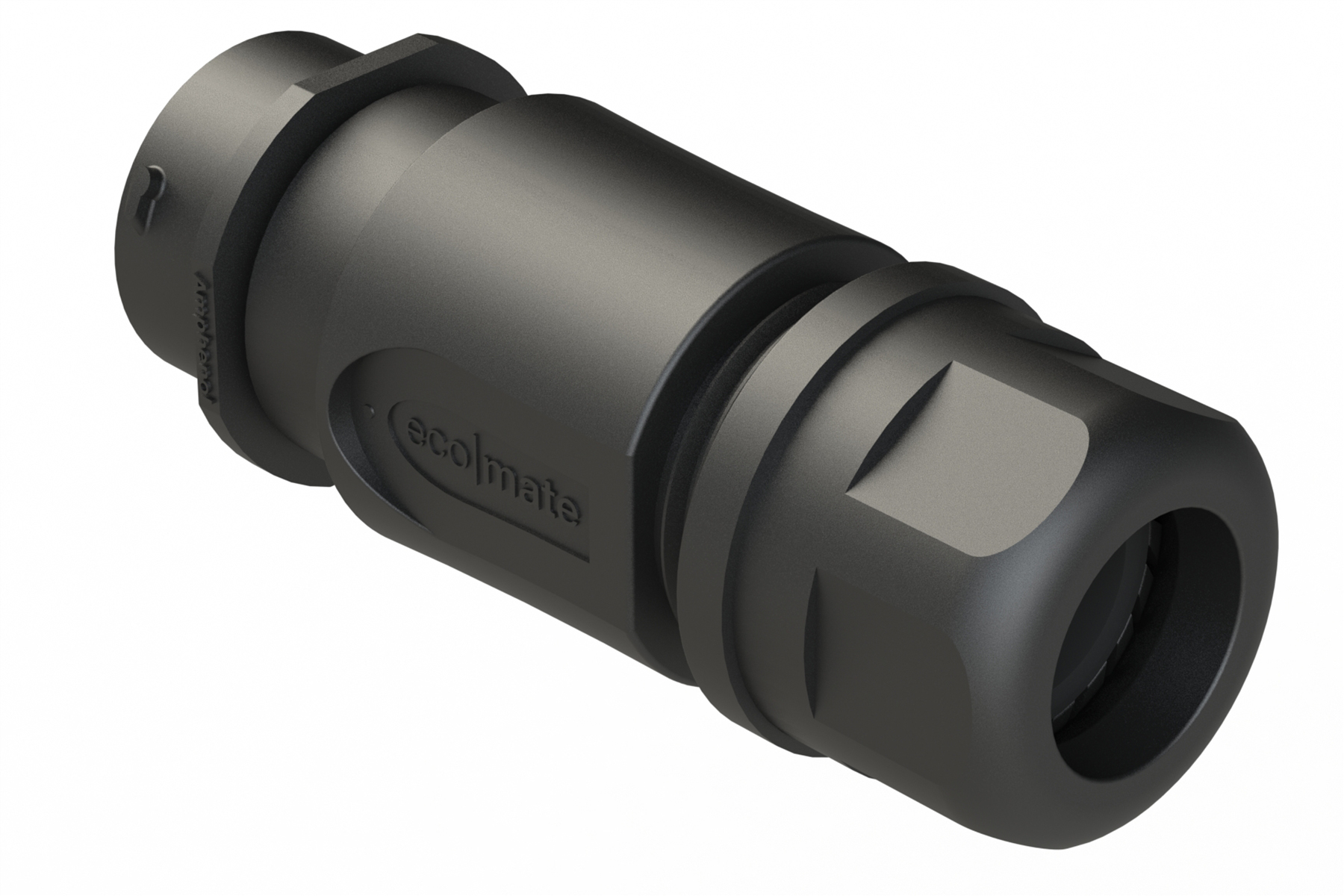

RTS1BS16N13P Receptacle, In-Line, 13(3+10) Position, Male, Shell Size 16
RTS1BS16N13P Receptacle, In-Line, 13(3+10) Position, Male, Shell Size 16
RTS1BS16N13P Receptacle, In-Line, 13(3+10) Position, Male, Shell Size 16
$0.00
In-Line Receptacle
PART NUMBER:
RTS1BS16N13P
Datasheet
:
View / Download
13
Circular
69
20
Plastic
SPECIFICATIONS:
Shell Size:
16
Number of Contacts:
13 (3+10)
Contact size:
12,20
Contact Type (Pin or Socket):
Pin
Gender:
Male
Amperage:
20A, 5A
Termination Technique:
Crimp
Wire Range:
14-24AWG (2.0-3.2mm²), 12-14AWG (3.3-4.3mm²)
Voltage:
500
Housing Material:
Thermoplastic
IP Rating:
IP67 and IP69K (in mated condition)
Temperature Range:
-40°C to +105°C
Rohs Compliant:
Yes
Salt Spray:
>500h
RTS6BS16N13S* Plug
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, In-Line, 13(3+10) Position, Male, Shell Size 16
Energy,Power,Robotics,Machine tools,Building Automation & Control,Instumentation measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
500
