Home
Our Product Lines
ecomate Connectors
ecomate Aquarius
14-8 Position
INLINE RECEPTACLES

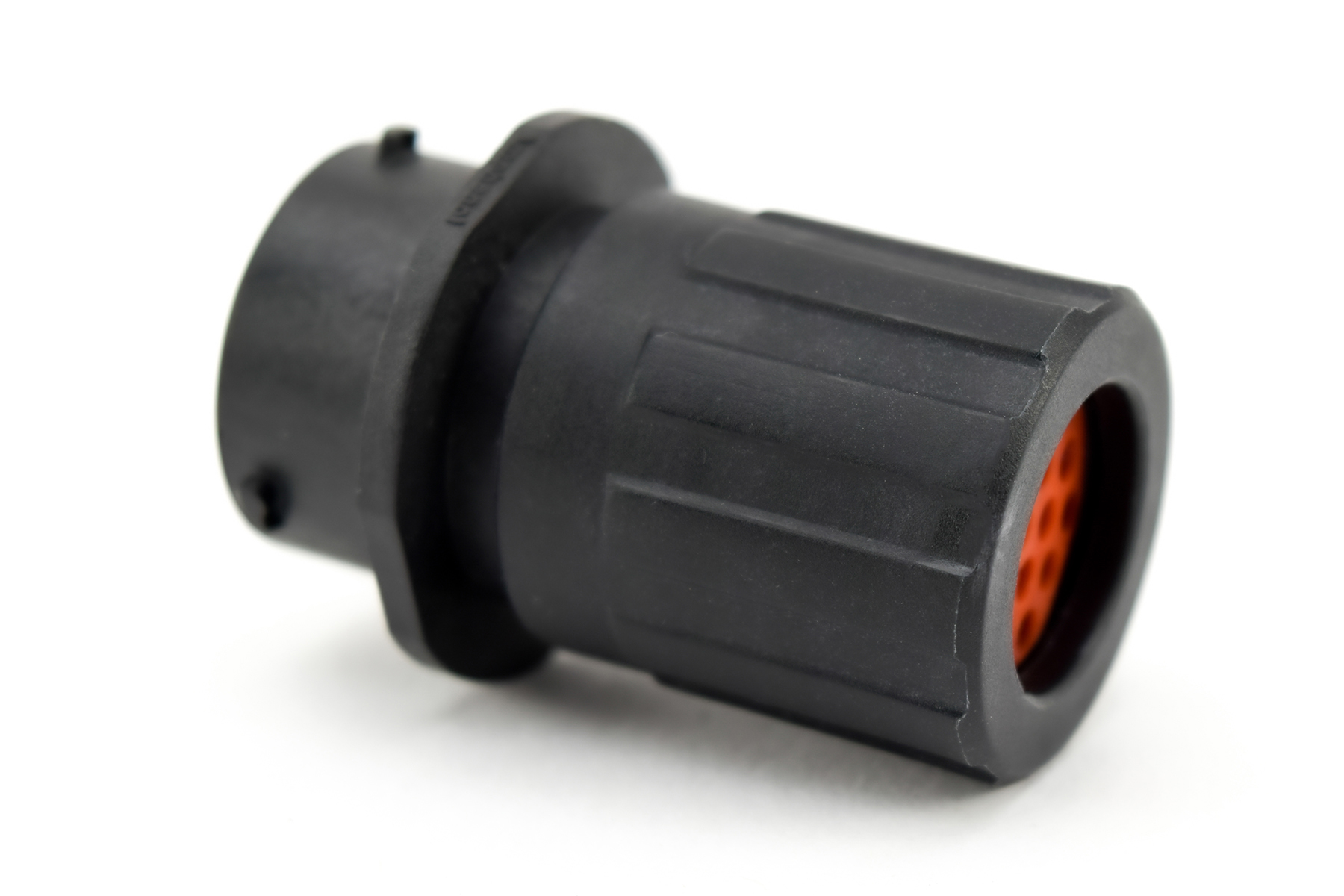

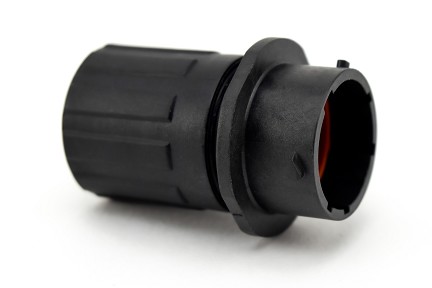

RTS1BS14N8PHEC03 Size 14 Inline Receptacle with Endcap, Male, 8 Positions, Contact Size 16 (1.6mm), Silicone Rubber Seal
RTS1BS14N8PHEC03 Size 14 Inline Receptacle with Endcap, Male, 8 Positions, Contact Size 16 (1.6mm), Silicone Rubber Seal
RTS1BS14N8PHEC03 Size 14 Inline Receptacle with Endcap, Male, 8 Positions, Contact Size 16 (1.6mm), Silicone Rubber Seal
$0.00
Inline Receptacle w Endcap
PART NUMBER:
RTS1BS14N8PHEC03
Datasheet
:
View / Download
3D Model
:
View/Download
8
Circular
69
13
Metal
SPECIFICATIONS:
Shell Size:
14
No. of Contacts:
8
Contact Size:
16
Amperage:
13A
Wire Range:
14-24
Voltage:
500
Contact Pin or Socket:
Pin
Housing Material:
Thermoplastic UL94 V-0
IP Rating:
IP67 and IP69K (in mated condition)
Temperature Range:
-40°C to +125°C
Rohs Compliant:
TRUE
Gender:
Male
Mating Part(s):
RTS6BS14N8S03, RTS6BS14N8SHEC03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Inline, 8 Position, Male, Shell Size 14, Silicone Seal, and End Cap with Individual Wire Sealing
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
500
Connectors~Receptacles~Inline|Connectors~Pin (Male)
Related Items
CA-4020-59 Sealing Plug, White, Size 20 (1.0mm), Size 16 (1.6mm)
REQUEST A QUOTE
MFX-3954 Hand Tool, Stamped & Formed Contact, Size 16, 20-14AWG
REQUEST A QUOTE
MP14M23F Size 16 Pin Contact, Machined, Gold Flash, 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MP14M23G10 Size 16 Pin Contact, Machined, Gold 10µ", 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MP14M23G15 Size 16 Pin Contact, Machined, Gold 15µ", 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MP14M23G30 Size 16 Pin Contact, Machined, Gold 30µ", 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MP14M23G5 Size 16 Pin Contact, Machined, Gold 5µ", 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MP16M23F Size 16 Pin Contact, Machined, Gold Flash, 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MP16M23G10 Size 16 Pin Contact, Machined, Gold 10µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MP16M23G15 Size 16 Pin Contact, Machined, Gold 15µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MP16M23G30 Size 16 Pin Contact, Machined, Gold 30µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MP16M23G5 Size 16 Pin Contact, Machined, Gold 5µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MP16M23S Size 16 Pin Contact, Machined, Silver Plating, 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MP16M23T Size 16 Pin Contact, Machined, Tin Plating, 13A Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MP20M23F Size 16 Pin Contact, Machined, Gold Flash, 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20M23G10 Size 16 Pin Contact, Machined, Gold 10µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20M23G15 Size 16 Pin Contact, Machined, Gold 15µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20M23G30 Size 16 Pin Contact, Machined, Gold 30µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20M23G5 Size 16 Pin Contact, Machined, Gold 5µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP24M23F Size 16 Pin Contact, Machined, Gold Flash, 13A, Wire Range .14-.25mm², 24-26 AWG
REQUEST A QUOTE
MP24M23G10 Size 16 Pin Contact, Machined, Gold 10µ", 13A, Wire Range .14-.25mm², 26-24 AWG
REQUEST A QUOTE
MP24M23G15 Size 16 Pin Contact, Machined, Gold 15µ", 13A, Wire Range .14-.25mm², 26-24 AWG
REQUEST A QUOTE
MP24M23G30 Size 16 Pin Contact, Machined, Gold 30µ", 13A, Wire Range .14-.25mm², 26-24 AWG
REQUEST A QUOTE
MP24M23G5 Size 16 Pin Contact, Machined, Gold 5µ", 13A, Wire Range .14-.25mm², 26-24 AWG
REQUEST A QUOTE
QXRT16 Contact Extraction Tool, #16 (Ø 1.6) Contact. Compatible to part # RX2025GE1
REQUEST A QUOTE
RTS014DCG Dust cap for Receptacle, size 14. Compatible to part # UTS14DCG
REQUEST A QUOTE
RTS14CCRG Coding color ring, Green, size 14. Compatible to part # UTS614CCRG
REQUEST A QUOTE
RTS14CCRR Coding color ring, Red, size 14. Compatible to part # UTS614CCRR
REQUEST A QUOTE
RTS14CCRY Coding color ring, Yellow, size 14. Compatible to part # UTS614CCRY
REQUEST A QUOTE
RTS1BS14N8P03 Receptacle, Inline, 8 positions, size 14, pin contact, silicone rubber seal
REQUEST A QUOTE
RTS6BS14N8S03 Straight plug with cord grip, 8 positions, size 14, socket contact, silicone rubber seal
REQUEST A QUOTE
RTS6BS14N8SHEC03 Straight plug with end cap, 8 positions, size 14, socket contact, endcap
REQUEST A QUOTE
SP14M2F Size 16 Stamped & Formed Pin Contact, Gold Flash Plating, 13A, Wire Range 16-14AWG, 3 Tangs. Reel of 3,000. Comparable to PN# SM14M1D70
REQUEST A QUOTE
