14-7 (3+4) Position Mix
INLINE RECEPTACLES

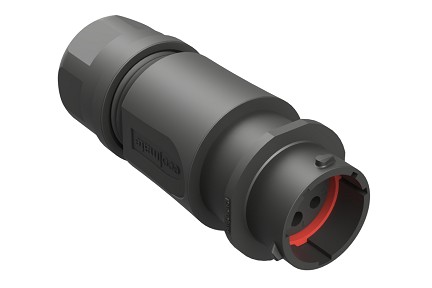

RTS1BS14N3W4P Receptacle, In-Line, 7 (3+4) Position, Female, Shell Size 14
RTS1BS14N3W4P Receptacle, In-Line, 7 (3+4) Position, Female, Shell Size 14
RTS1BS14N3W4P Receptacle, In-Line, 7 (3+4) Position, Female, Shell Size 14
$0.00
Inline Receptacle
PART NUMBER:
RTS1BS14N3W4P
Datasheet
:
View / Download
7
Circular
69
23
Plastic
SPECIFICATIONS:
Shell Size:
14
Number of Contacts:
7 (3+4)
Contact Szes:
12,16
Contact Type (Pin or Socket):
Pin
Gender:
Male
Amperage:
23A,13A
Wire Range:
14-24AWG (2.0-3.2mm²), 12-14AWG (3.3-4.3mm²)
Voltage Rating:
500V
Housing Material:
Thermoplastic
IP Rating:
IP67 & IP69K (in mated condition)
Temperature Range:
-40°C to +105°C
Rohs Compliant:
Yes
Salt Spray:
>500h
Mating Part(s)*:
RTS6BS14N3W4P*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, In-Line, 7 (3+4) Position, Female, Shell Size 14
EcoMate~Aquarius
500
Connectors~Receptacles~Inline|Connectors~Pin (Male)
