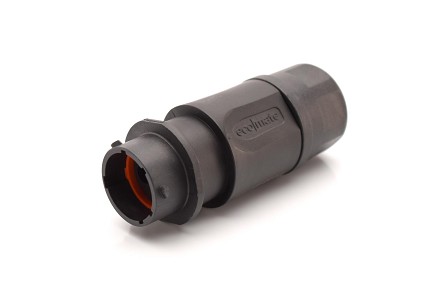

RTS1BS14N3S03 Receptacle, Inline, 3 positions, size 14, socket contact, silicone rubber seal. Comparable to PN #UTS1JC142G1S
RTS1BS14N3S03 Receptacle, Inline, 3 positions, size 14, socket contact, silicone rubber seal. Comparable to PN #UTS1JC142G1S
RTS1BS14N3S03 Receptacle, Inline, 3 positions, size 14, socket contact, silicone rubber seal. Comparable to PN #UTS1JC142G1S
$0.00
PART NUMBER:
RTS1BS14N3S03
Datasheet
:
View / Download
3D Model
:
View/Download
3
Circular
69
45
Plastic
SPECIFICATIONS:
Shell Size:
14
No. of Contacts:
3
Contact Size:
#8 (3.6mm)
Amperage:
45A
AWG:
12-10
Voltage:
600
Contact Pin or Socket:
Socket
IP Rating:
IP67 / IP69k (in mated condition)
Housing Material:
Thermoplastic UL94 V-0
Temperature Range:
-40°C to +125°C
Salt Spray:
>500h
Male or Female:
Male
Mating Parts:
RTS6BS14N3P03,
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Inline, 3 positions, size 14, socket contact, silicone rubber seal
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
600
Connectors~Receptacles~Inline|Connectors~Socket (Female)
