14-19 Position
INLINE RECEPTACLES

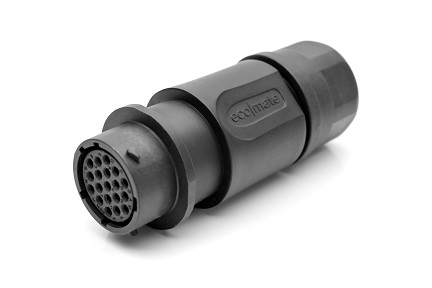

RTS1BS14N19S03 Receptacle, Inline, 19 positions, size 14, socket contact, silicone rubber seal. Comparable to PN #UTS1JC1419S
RTS1BS14N19S03 Receptacle, Inline, 19 positions, size 14, socket contact, silicone rubber seal. Comparable to PN #UTS1JC1419S
RTS1BS14N19S03 Receptacle, Inline, 19 positions, size 14, socket contact, silicone rubber seal. Comparable to PN #UTS1JC1419S
$0.00
Receptacle, Inline, 19 positions, size 14, socket contact, silicone rubber seal
PART NUMBER:
RTS1BS14N19S03
Datasheet
:
View / Download
3D Model
:
View/Download
19
Circular
69
7.5
Plastic
SPECIFICATIONS:
No. of Contacts:
19
Shell Size:
14
Amperage:
5A(stamped) or 7.5A (machined)
Contact size:
20
AWG:
20-30
Volt:
250
Contact Pin or Socket:
Socket
IP Rating:
IP67 / IP69k (in mated condition)
Housing Material:
Thermoplastic UL94 V-0
Temperature Range:
-40° C to +125°C
Rohs Compliant:
TRUE
Salt Spray:
>500h
Male or Female:
Female
Mating Parts:
RTS6BS14N19P03, RTS6BS14N19PHEC03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Inline, 19 Position, Female, Shell Size 14, with Silicone Seal
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
250
Connectors~Receptacles~Inline|Connectors~Socket (Female)
