12-10 Position
INLINE RECEPTACLES

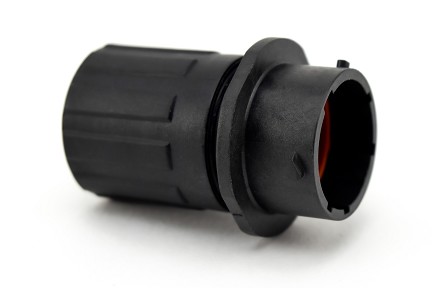

RTS1BS12N10SHEC03 Size 12 Inline Receptacle with Endcap, Female, 10 Positions, Contact Size 20, Silicone Rubber Seal. Comparable to PN #UTS6GN1210S
RTS1BS12N10SHEC03 Size 12 Inline Receptacle with Endcap, Female, 10 Positions, Contact Size 20, Silicone Rubber Seal. Comparable to PN #UTS6GN1210S
RTS1BS12N10SHEC03 Size 12 Inline Receptacle with Endcap, Female, 10 Positions, Contact Size 20, Silicone Rubber Seal. Comparable to PN #UTS6GN1210S
$0.00
Inline Receptacle w Endcap
PART NUMBER:
RTS1BS12N10SHEC03
Datasheet
:
View / Download
3D Model
:
View/Download
10
Circular
69
7.5
Metal
SPECIFICATIONS:
Shell Size:
12
No. of Contacts:
10
Contact Size:
20
Amperage:
7.5A/5.0A
Wire Range:
20-28
Voltage:
250
Contact Pin or Socket:
Socket
Housing Material:
Thermoplastic UL94 V-0
IP Rating:
IP67 and IP69K (in mated condition)
Temperature Range:
-40°C to +125°C
Rohs Compliant:
TRUE
Gender:
Female
Mating Part(s):
RTS6BS12N10S03,RTS6BS12N10SHEC03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Inline, 10 Position, Female, Shell Size 12, Silicone Seal, and End Cap with Individual Wire Sealing
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
250
Connectors~Receptacles~Inline|Connectors~Socket (Female)
