  7. RTS1BS10N3W3S03 Receptacle, Inline, 6 (3+3) Position, Female, Shell Size 10, with Back Shell and Silicone Seal. Comparable to PN# UTS1JS103W3S

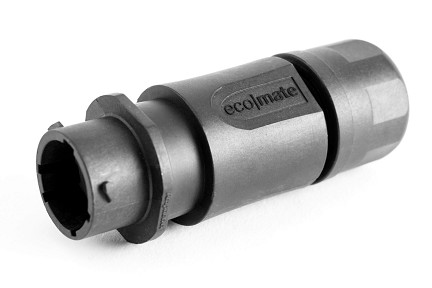

RTS1BS10N3W3S03 Receptacle, Inline, 6 (3+3) Position, Female, Shell Size 10, with Back Shell and Silicone Seal. Comparable to PN# UTS1JS103W3S
RTS1BS10N3W3S03 Receptacle, Inline, 6 (3+3) Position, Female, Shell Size 10, with Back Shell and Silicone Seal. Comparable to PN# UTS1JS103W3S

RTS1BS10N3W3S03 Receptacle, Inline, 6 (3+3) Position, Female, Shell Size 10, with Back Shell and Silicone Seal. Comparable to PN# UTS1JS103W3S

$0.00
Inline Receptacle
PART NUMBER: RTS1BS10N3W3S03
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Shell Size: 10
  • Number of Contacts: 6 (3+3)
  • Contact Size(s): 16,20
  • Amperage: 13A ,5A
  • Wire Range: 14-24 AWG
  • Voltage Rating: 500
  • Contact Pin or Socket: Socket
  • Gender: Female
  • Housing Material: Thermoplastic
  • IP Rating: IP67 and IP69K (in mated condition)
  • Temperature Range: -40°C to +125°C
  • Rohs Compliant: TRUE
  • Insulation Resistance: 5000 MEGOHMS Min
  • Mating Part(s)* : RTS6BS10N3W3P*
Receptacle, Inline, 6 (3+3) Position, Female, Shell Size 10, with Back Shell and Silicone Seal. Comparable to PN# UTS1JS103W3S
