Home
Our Product Lines
ecomate Connectors
ecomate Aquarius
10-4 (2+2) Position Mix
INLINE RECEPTACLES

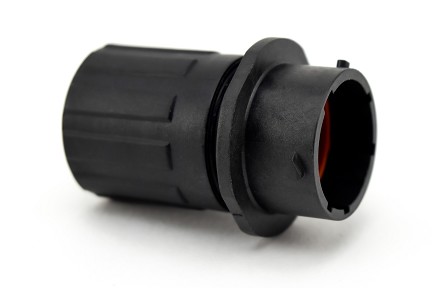

RTS1BS10N2SHEC03 Receptacle, Inline, 4 (2+2) Position, Female, Shell Size 10, Silicone Seal, and End Cap with Individual Wire Sealing
RTS1BS10N2SHEC03 Receptacle, Inline, 4 (2+2) Position, Female, Shell Size 10, Silicone Seal, and End Cap with Individual Wire Sealing
RTS1BS10N2SHEC03 Receptacle, Inline, 4 (2+2) Position, Female, Shell Size 10, Silicone Seal, and End Cap with Individual Wire Sealing
$0.00
Inline Receptacle w Backshell
PART NUMBER:
RTS1BS10N2SHEC03
Datasheet
:
View / Download
3D Model
:
View/Download
4
Circular
69
13
Metal
SPECIFICATIONS:
Shell Size:
10
No. of Contacts:
4 (2+2)
Contact Size:
20,16
Amperage:
13A ,5A (stamped) or 7.5A (machined)
Wire Range:
14-26 / 20-30
Voltage:
500
Contact Pin or Socket:
Socket
Housing Material:
Thermoplastic UL94 V-0
IP Rating:
IP67 and IP69K (in mated condition)
Temperature Range:
-40°C to +125°C
Rohs Compliant:
TRUE
Gender:
Female
Mating Part(s):
RTS6BS10N2P03, RTS6BS10N2PHEC03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Inline, 4 (2+2) Position, Female, Shell Size 10, Silicone Seal, and End Cap with Individual Wire Sealing
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
500
Connectors~Receptacles~Inline|Connectors~Socket (Female)
Related Items
CA-4020-59 Sealing Plug, White, Size 20 (1.0mm), Size 16 (1.6mm)
REQUEST A QUOTE
MFX-3954 Hand Tool, Stamped & Formed Contact, Size 16, 20-14AWG
REQUEST A QUOTE
MFX-3957 Crimp Die for Stamped & Formed Contact
REQUEST A QUOTE
MFX-3958 Hand Tool, Stamped & Formed Contact, Size 20, 20-28AWG
REQUEST A QUOTE
MS20W23F Size 20 Socket Contact, Machined, Gold Flash, 7.5A, Wire Range .34-.50mm², 20-22 AWG
REQUEST A QUOTE
MS20W23G10 Size 20 Socket Contact, Machined, Gold 10µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MS20W23G15 Size 20 Socket Contact, Machined, Gold 15µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MS20W23G30 Size 20 Socket Contact, Machined, Gold 30µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MS20W23G5 Size 20 Socket Contact, Machined, Gold 5µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MS24M23F Size 20 Socket Contact, Machined, Gold Flash, 13A, Wire Range .14-.25mm², 24-26 AWG
REQUEST A QUOTE
MS24M23G10 Size 20 Socket Contact, Machined, Gold 10µ", 13A, Wire Range .14-.25mm², 26-24 AWG
REQUEST A QUOTE
MS24M23G15 Size 20 Socket Contact, Machined, Gold 15µ", 13A, Wire Range .14-.25mm², 26-24 AWG
REQUEST A QUOTE
MS24M23G30 Size 20 Socket Contact, Machined, Gold 30µ", 13A, Wire Range .14-.25mm², 26-24 AWG
REQUEST A QUOTE
MS24M23G5 Size 20 Socket Contact, Machined, Gold 5µ", 13A, Wire Range .14-.25mm², 26-24 AWG
REQUEST A QUOTE
MS24W23F Size 20 Socket Contact, Machined, Gold Flash, 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MS24W23G10 Size 20 Socket Contact, Machined, Gold 10µ",7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MS24W23G15 Size 20 Socket Contact, Machined, Gold 10µ", 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MS24W23G30 Size 20 Socket Contact, Machined, Gold 30µ", 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MS24W23G5 Size 20 Socket Contact, Machined, Gold 5µ", 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MS28W23F Size 20 Socket Contact, Machined, Gold Flash, 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MS28W23G10 Size 20 Socket Contact, Machined, Gold 10µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MS28W23G15 Size 20 Socket Contact, Machined, Gold 15µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MS28W23G30 Size 20 Socket Contact, Machined, Gold 30µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MS28W23G5 Size 20 Socket Contact, Machined, Gold 5µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
QXRT16 Contact Extraction Tool, #16 (Ø 1.6) Contact. Compatible to part # RX2025GE1
REQUEST A QUOTE
QXRT20 Contact Extraction Tool, #20 (Ø 1.0) Contact. Comparable to PN# RX20D44
REQUEST A QUOTE
RTS010DCG Dust cap for Receptacle, Size 10. Compatible to part # RTS010DCG
REQUEST A QUOTE
RTS10CCRG Coding color ring, Green, size 10. Compatible to part # UTS610CCRG
REQUEST A QUOTE
RTS10CCRR Coding color ring, Red, size 10. Compatible to part # UTS610CCRR
REQUEST A QUOTE
RTS10CCRY Coding color ring, Yellow, size 10. Compatible to part # UTS610CCRY
REQUEST A QUOTE
RTS1BS10N2S03 Receptacle, Inline, 4 (2+2) positions, size 10, socket contact, silicone rubber seal
REQUEST A QUOTE
RTS6BS10N2P03 Straight plug with cord grip, 4 (2+2) positions, size 10, pin contact, silicone rubber seal
REQUEST A QUOTE
RTS6BS10N2PHEC03 Straight plug with endcap, 4 (2+2) positions, size 10, pin contact, endcap
REQUEST A QUOTE
SS20W2F Size 20 Stamped & Formed Socket Contact, Gold Flash Plating, Wire Range 18-22AWG, 3 Tangs. 3,000 pcs. Reel
REQUEST A QUOTE
SS20W2G10 Size 20 Socket Contact, Stamped, Gold 10µ" over Nickel, 5A, Wire Range .34-.50mm², 20-22 AWG, with 3 Tangs
REQUEST A QUOTE
