SQUARE FLANGE RECEPTACLES

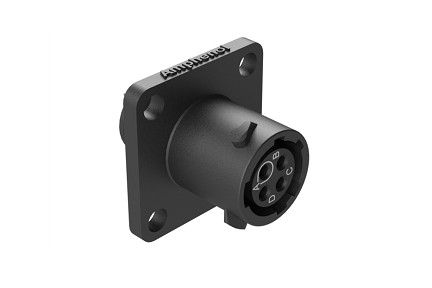

RTS08N4S Receptacle, square flange, 4 positions, size 8, socket contact, NBR Seal, contacts pre-loaded. Comparable to PN #UTS08E4S
RTS08N4S Receptacle, square flange, 4 positions, size 8, socket contact, NBR Seal, contacts pre-loaded. Comparable to PN #UTS08E4S
RTS08N4S Receptacle, square flange, 4 positions, size 8, socket contact, NBR Seal, contacts pre-loaded. Comparable to PN #UTS08E4S
$0.00
Square Flange Receptacle
PART NUMBER:
RTS08N4S
Datasheet
:
View / Download
3D Model
:
View/Download
4
Circular
69
7
Plastic
SPECIFICATIONS:
Shell Size:
8
No. of Contacts:
4
Contact Pin or Socket?:
Socket
Contact size:
20
Amperage:
7A
Voltage:
250
IP Rating:
IP67/IP69k (in mated condition)
RoHS Compliant?:
Yes
Salt Spray:
>500h
Temperature Range:
-40 to 105°C
Housing Material:
Thermoplastic UL94 V-0
Mating Part Number(s):
RTS6BS8N4P
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Square Flange, 4 Position, Female, Shell Size 8, NBR Seal, Contacts Pre-loaded
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
250
Connectors~Receptacles~Square Flange|Connectors~Receptacles|Connectors~Socket (Female)
