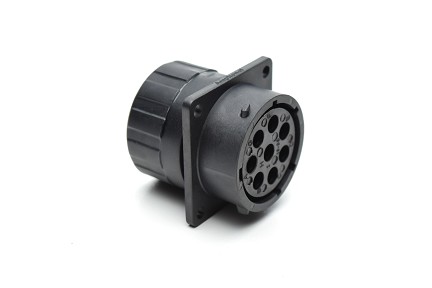

RTS018N8SHEC03 Receptacle, square flange, 8 positions, size 18, socket contact, silicone rubber seal, endcap
RTS018N8SHEC03 Receptacle, square flange, 8 positions, size 18, socket contact, silicone rubber seal, endcap

RTS018N8SHEC03 Receptacle, square flange, 8 positions, size 18, socket contact, silicone rubber seal, endcap

$0.00
Square Flange Receptacle
PART NUMBER: RTS018N8SHEC03
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Shell Size: 18
  • No. of Contacts: 8
  • Socket: Socket
  • Contact size: 2.5
  • IP Rating: IP67 / IP69k (in mated condition)
  • Salt Spray: >500h
  • Termination Technique: Crimp
  • Temperature Range: -40 to 125°C
  • Housing Material: Thermoplastic UL94 V-0
  • Mating Parts: RTS6BS18N8P03, RTS6BS18N8PHEC03
Receptacle, Square Flange, 8 Position, Female, Shell Size 18, Silicone Seal, and End Cap with Individual Wire Sealing
