ecomate Connectors
ecomate Aquarius
18-32 Position
SQUARE FLANGE RECEPTACLES

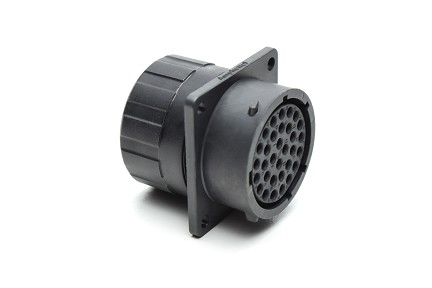

RTS018N32SHEC03 Receptacle, square flange, 32 positions, size 18, socket contact, silicone rubber seal, endcap. Comparable to PN #UTS0GN1832S
RTS018N32SHEC03 Receptacle, square flange, 32 positions, size 18, socket contact, silicone rubber seal, endcap. Comparable to PN #UTS0GN1832S
RTS018N32SHEC03 Receptacle, square flange, 32 positions, size 18, socket contact, silicone rubber seal, endcap. Comparable to PN #UTS0GN1832S
$0.00
Square Flange Receptacle
PART NUMBER:
RTS018N32SHEC03
Datasheet
:
View / Download
3D Model
:
View/Download
32
Circular
69
7.5
Plastic
SPECIFICATIONS:
Shell Size:
18
No. of Contacts:
32
Contact Size(s):
20
Contact Pin or Socket:
Socket
AWG:
20-30
Amperage:
5A(stamped) or 7.5A (machined)
Volts:
250
Housing Material:
Thermoplastic UL94 V-0
IP Rating:
IP67 / IP69k (in mated condition)
Temperature Range:
-40°C to +125°C
Salt Spray:
>500h
Mating Parts:
RTS6BS18N32P03, RTS6BS18N32PHEC03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Square Flange, 32 Position, Female, Shell Size 18, Silicone Seal, and End Cap with Individual Wire Sealing
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
250
Connectors~Receptacles~Square Flange|Connectors~Receptacles|Connectors~Socket (Female)
