ecomate Connectors
ecomate Aquarius
18-32 Position
SQUARE FLANGE RECEPTACLES

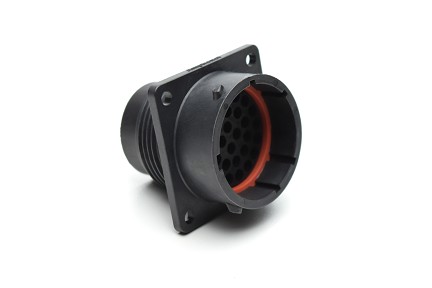

RTS018N32P03 Receptacle, square flange, 32 positions, size 18, pin contact, silicone rubber seal. Comparable to PN #UTS01832P
RTS018N32P03 Receptacle, square flange, 32 positions, size 18, pin contact, silicone rubber seal. Comparable to PN #UTS01832P
RTS018N32P03 Receptacle, square flange, 32 positions, size 18, pin contact, silicone rubber seal. Comparable to PN #UTS01832P
$0.00
Receptacle
PART NUMBER:
RTS018N32P03
Datasheet
:
View / Download
3D Model
:
View/Download
32
Circular
69
7.5
Plastic
SPECIFICATIONS:
Shell Size:
18
No. of Contacts:
32
Contact Pin or Socket:
Pin
Contact size:
20
Amperage:
5A(stamped) or 7.5A (machined)
Volt:
250
IP Rating:
IP67 / IP69k (in mated condition)
Rohs Compliant:
Yes
Salt Spray:
>500h
Gender:
Male
Temperature Range:
-40 to 125°C
Housing Material:
Thermoplastic UL94 V-0
Mating Parts:
RTS6BS18N32S03, RTS6BS18N32SHEC03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Square Flange, 32 Position, Male, Shell Size 18
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
250
Connectors~Receptacles~Square Flange|Connectors~Receptacles|Connectors~Pin (Male)
