ecomate Connectors
ecomate Aquarius
16-26 Position
SQUARE FLANGE RECEPTACLES

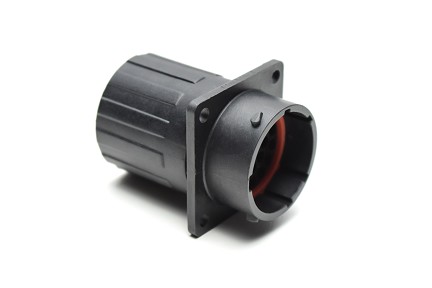

RTS016N26PHEC03 Receptacle, square flange, 26 positions, size 16, pin contact, silicone rubber seal, endcap
RTS016N26PHEC03 Receptacle, square flange, 26 positions, size 16, pin contact, silicone rubber seal, endcap
RTS016N26PHEC03 Receptacle, square flange, 26 positions, size 16, pin contact, silicone rubber seal, endcap
$0.00
Square Flange Receptacle
PART NUMBER:
RTS016N26PHEC03
Datasheet
:
View / Download
3D Model
:
View/Download
26
Circular
69
7.5
Plastic
SPECIFICATIONS:
Shell Size:
16
No. of Contacts:
26
Pin:
Pin
Contact size:
20
IP Rating:
IP67 / IP69k (in mated condition)
Salt Spray:
>500h
Termination Technique:
Crimp
Temperature Range:
-40 to 125°C
Housing Material:
Thermoplastic UL94 V-0
Mating Parts:
RTS6BS16N26S03, RTS6BS16N26SHEC03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Square Flange, 26 Position, Male, Shell Size 16, with Silicone Seal
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
250
Connectors~Receptacles~Square Flange|Connectors~Receptacles|Connectors~Pin (Male)
