Home
Our Product Lines
ecomate Connectors
ecomate Aquarius
16-19 Position
SQUARE FLANGE RECEPTACLES

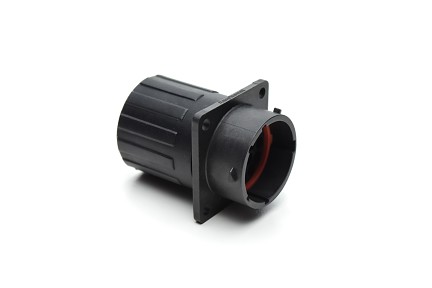

RTS016N19PHEC03 Square Flange Receptacle, 19 positions, size 16, pin contact, silicone rubber seal, endcap
RTS016N19PHEC03 Square Flange Receptacle, 19 positions, size 16, pin contact, silicone rubber seal, endcap
RTS016N19PHEC03 Square Flange Receptacle, 19 positions, size 16, pin contact, silicone rubber seal, endcap
$0.00
Square Flange Receptacle
PART NUMBER:
RTS016N19PHEC03
Datasheet
:
View / Download
3D Model
:
View/Download
19
Circular
69
13
Plastic
SPECIFICATIONS:
Shell Size:
16
No. of Contacts:
19
Contact size:
16
Amperage:
13A
Voltage:
500
Contact Gender:
Pin
IP Rating:
IP67 / IP69k (in mated condition)
Salt Spray:
>500h
Gender :
Male
Temperature Range:
-40 to 125°C
Housing Material:
Thermoplastic UL94 V-0
Mating Parts:
RTS6BS16N19S03, RTS6BS16N19SHEC03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Square Flange, 19 Position, Male, Shell Size 16, Silicone Seal, and End Cap with Individual Wire Sealing
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
500
Connectors~Receptacles~Square Flange|Connectors~Pin (Male)
