14-4 (2+2) Position Mix
SQUARE FLANGE RECEPTACLES

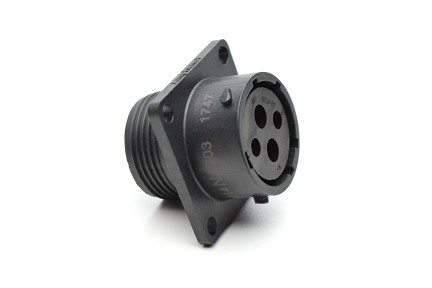

RTS014N2S03 Receptacle, square flange, 4 (2+2) positions, size 14, socket contact, silicone rubber seal
RTS014N2S03 Receptacle, square flange, 4 (2+2) positions, size 14, socket contact, silicone rubber seal
RTS014N2S03 Receptacle, square flange, 4 (2+2) positions, size 14, socket contact, silicone rubber seal
$0.00
Receptacle
PART NUMBER:
RTS014N2S03
Datasheet
:
View / Download
3D Model
:
View/Download
4
Circular
69
23
Plastic
SPECIFICATIONS:
Shell Size:
14
No. of Contacts:
4 (2+2)
Contact Pin or Socket:
Socket
Contact size:
16, 2.5mm
Amperage:
23A & 13A
Volt:
500
IP Rating:
IP67 / IP69k (in mated condition)
Rohs Compliant:
Yes
Salt Spray:
>500h
Gender:
Female
Temperature Range:
-40 to 125°C
Housing Material:
Thermoplastic UL94 V-0
Mating Parts:
RTS6BS14N2P03, RTS6BS14N2PHEC03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Square Flange, 4 (2+2) Position, Female, Shell Size 14, Silicone Seal
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
500
Connectors~Receptacles~Square Flange|Connectors~Receptacles|Connectors~Socket (Female)
