14-12 Position
SQUARE FLANGE RECEPTACLES

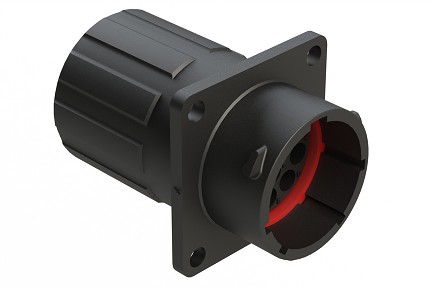

RTS014N12PHEC03 Receptacle, square flange, 12 positions, size 14, pin contact, silicone rubber seal, endcap. Comparable to PN #UTS0GN1412P
RTS014N12PHEC03 Receptacle, square flange, 12 positions, size 14, pin contact, silicone rubber seal, endcap. Comparable to PN #UTS0GN1412P
RTS014N12PHEC03 Receptacle, square flange, 12 positions, size 14, pin contact, silicone rubber seal, endcap. Comparable to PN #UTS0GN1412P
$0.00
Receptacle
PART NUMBER:
RTS014N12PHEC03
Datasheet
:
View / Download
3D Model
:
View/Download
12
Circular
69
13
Plastic
SPECIFICATIONS:
Shell Size:
14
No. of Contacts:
12
Contact Pin or Socket:
Pin
Contact size:
16
Amperage:
13A
Volt:
500
IP Rating:
IP67 / IP69k (in mated condition)
Rohs Compliant:
Yes
Salt Spray:
>500h
Gender:
Male
Temperature Range:
-40 to 125°C
Housing Material:
Thermoplastic UL94 V-0
Mating Parts:
RTS6BS14N12S03, RTS6BS14N12SHEC03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Square Flange, 12 Position, Male, Shell Size 14, Silicone Seal, and End Cap with Individual Wire Sealing
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
500
Connectors~Receptacles~Square Flange|Connectors~Receptacles|Connectors~Pin (Male)
