ecomate Connectors
ecomate Aquarius
12-8 Position
SQUARE FLANGE RECEPTACLES

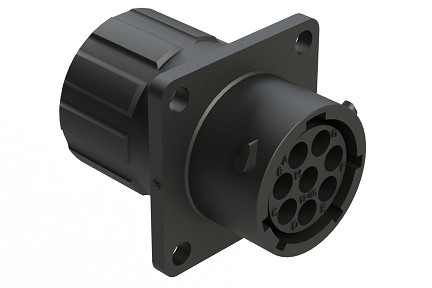

RTS012N8SHEC03 Receptacle, square flange, 8 positions, size 12, socket contact, silicone rubber seal, endcap. Comparable to PN #UTS0GN128S
RTS012N8SHEC03 Receptacle, square flange, 8 positions, size 12, socket contact, silicone rubber seal, endcap. Comparable to PN #UTS0GN128S
RTS012N8SHEC03 Receptacle, square flange, 8 positions, size 12, socket contact, silicone rubber seal, endcap. Comparable to PN #UTS0GN128S
$0.00
Receptacle
PART NUMBER:
RTS012N8SHEC03
Datasheet
:
View / Download
3D Model
:
View/Download
8
Circular
69
13
Plastic
SPECIFICATIONS:
Shell Size:
12
No. of Contacts:
8
Contact Pin or Socket:
Socket
Contact size:
16
Amperage:
13A
Volt:
500
IP Rating:
IP67 / IP69k (in mated condition)
Rohs Compliant:
Yes
Salt Spray:
>500h
Gender:
Female
Temperature Range:
-40 to 125°C
Housing Material:
Thermoplastic UL94 V-0
Mating Parts:
RTS6BS12N8P03, RTS6BS12N8PHEC03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Square Flange, 8 Position, Female, Shell Size 12, Silicone Seal, and End Cap with Individual Wire Sealing
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
500
Connectors~Receptacles~Square Flange|Connectors~Receptacles|Connectors~Socket (Female)
