Home
Our Product Lines
ecomate Connectors
ecomate RSSM
14-19 Position
PLUGS

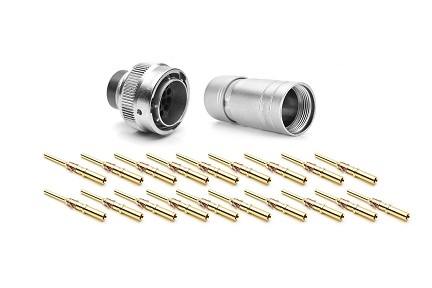

RT0W61419PNH03SS-K Plug Kit, 19 Position, Male, Shell Size 14, Silicone Seal, with Machined Contacts, IP69K
RT0W61419PNH03SS-K Plug Kit, 19 Position, Male, Shell Size 14, Silicone Seal, with Machined Contacts, IP69K
RT0W61419PNH03SS-K Plug Kit, 19 Position, Male, Shell Size 14, Silicone Seal, with Machined Contacts, IP69K
$0.00
Plug Kit, Pin, with silicone seal IP69k
PART NUMBER:
RT0W61419PNH03SS-K
Datasheet
:
View / Download
19
Circular
69
7.5
Metal
SPECIFICATIONS:
No. of Contacts:
19
Shell Size:
14
Amperage:
7.5A
Contact size:
20
AWG:
20-30
Volt:
250
Contact Pin or Socket:
Pin
IP Rating:
IP67 / IP69k (in mated condition)
Housing Material:
Zinc Alloy, Nickel Plated
Temperature Range:
-40° C to +125°C
Rohs Compliant:
TRUE
Salt Spray:
>500h
Male or Female:
Male
Mating Parts:
RT0W01419SKNH03, RT0W01419SKNH03-K, RT0W61419SNH03SS, RT0W61419SNH03SS-K
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Plug Kit, 19 Position, Male, Shell Size 14, Silicone Seal, with Machined Contacts, IP69K
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~EcoMate RM|EcoMate~EcoMate SS
250
Connectors~Connector Kits|Connectors~Plugs|Connectors~~Pin (Male)
Related Items
CA-4020-59 Sealing Plug, White, Size 20 (1.0mm), Size 16 (1.6mm)
REQUEST A QUOTE
MP20W23F Size 20 Pin Contact, Machined, Gold Flash, 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20W23G10 Size 20 Pin Contact, Machined, Gold 10µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20W23G15 Size 20 Pin Contact, Machined, Gold 15µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20W23G30 Size 20 Pin Contact, Machined, Gold 30µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20W23G5 Size 20 Pin Contact, Machined, Gold 5µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP24W23F Size 20 Pin Contact, Machined, Gold Flash, 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MP24W23G10 Size 20 Pin Contact, Machined, Gold 10µ", 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MP24W23G15 Size 20 Pin Contact, Machined, Gold 15µ", 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MP24W23G30 Size 20 Pin Contact, Machined, Gold 30µ", 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MP24W23G5 Size 20 Pin Contact, Machined, Gold 5µ", 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MP28W23F Size 20 Pin Contact, Machined, Gold Flash, 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MP28W23G10 Size 20 Pin Contact, Machined, Gold 10µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MP28W23G15 Size 20 Pin Contact, Machined, Gold 15µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MP28W23G30 Size 20 Pin Contact, Machined, Gold 30µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MP28W23G5 Size 20 Pin Contact, Machined, Gold 5µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
RT0L-14CG-NS1 Long Backshell (Straight), Shell Size 14 ,6.5-10.0mm
REQUEST A QUOTE
RT0W01419SKNH03 Square Flange Receptacle, Socket, with silicone seal IP69k
REQUEST A QUOTE
RT0W01419SKNH03-K Square Flange Receptacle Kit, Socket, with silicone seal IP69k
REQUEST A QUOTE
RT0W61419PNH03SS Plug, Pin, with silicone seal IP69k
REQUEST A QUOTE
RT0W61419SNH03SS Square Flange Receptacle, Socket, with silicone seal IP69k
REQUEST A QUOTE
RT0W61419SNH03SS-K Plug Kit, 19 Position, Female, Shell Size 14, Silicone Seal, with Machined Contacts, IP 69K
REQUEST A QUOTE
SP20W1F Pin Contact, Stamped, Size 20, Gold Flash, Wire Range .34-.50mm², 22-20AWG, 5A. Compatible to part # SM20W3J
REQUEST A QUOTE
SP20W1G10 Pin Contact, Stamped, Size 20, Gold 10µ", Wire Range .34-.50mm², 22-20AWG, 5A
REQUEST A QUOTE
SP20W1G15 Pin Contact, Stamped, Size 20, Gold 15µ", Wire Range .34-.50mm², 22-20AWG, 5A
REQUEST A QUOTE
SP20W1G30 Pin Contact, Stamped, Size 20, Gold 30µ", Wire Range .34-.50mm², 22-20AWG, 5A
REQUEST A QUOTE
SP20W1G5 Pin Contact, Stamped, Size 20, Gold 5µ", Wire Range .34-.50mm², 22-20AWG, 5A
REQUEST A QUOTE
SP20W2F Size 20 Stamped & Formed Pin Contact, Gold Flash Plating, 5A, Wire Range 18-22AWG, 3 Tangs. 3,000 pcs Reel
REQUEST A QUOTE
SP20W2T Size 20 Pin Contact, Stamped, Tin over Nickel, 5A, Wire Range .34-.50mm², 20-22 AWG,with 3 Tangs
REQUEST A QUOTE
SP20WG10 Size 20 Pin Contact, Stamped, Gold 10µ", 5A, Wire Range .34-.50mm², 20-22 AWG,with 3 prongs
REQUEST A QUOTE
