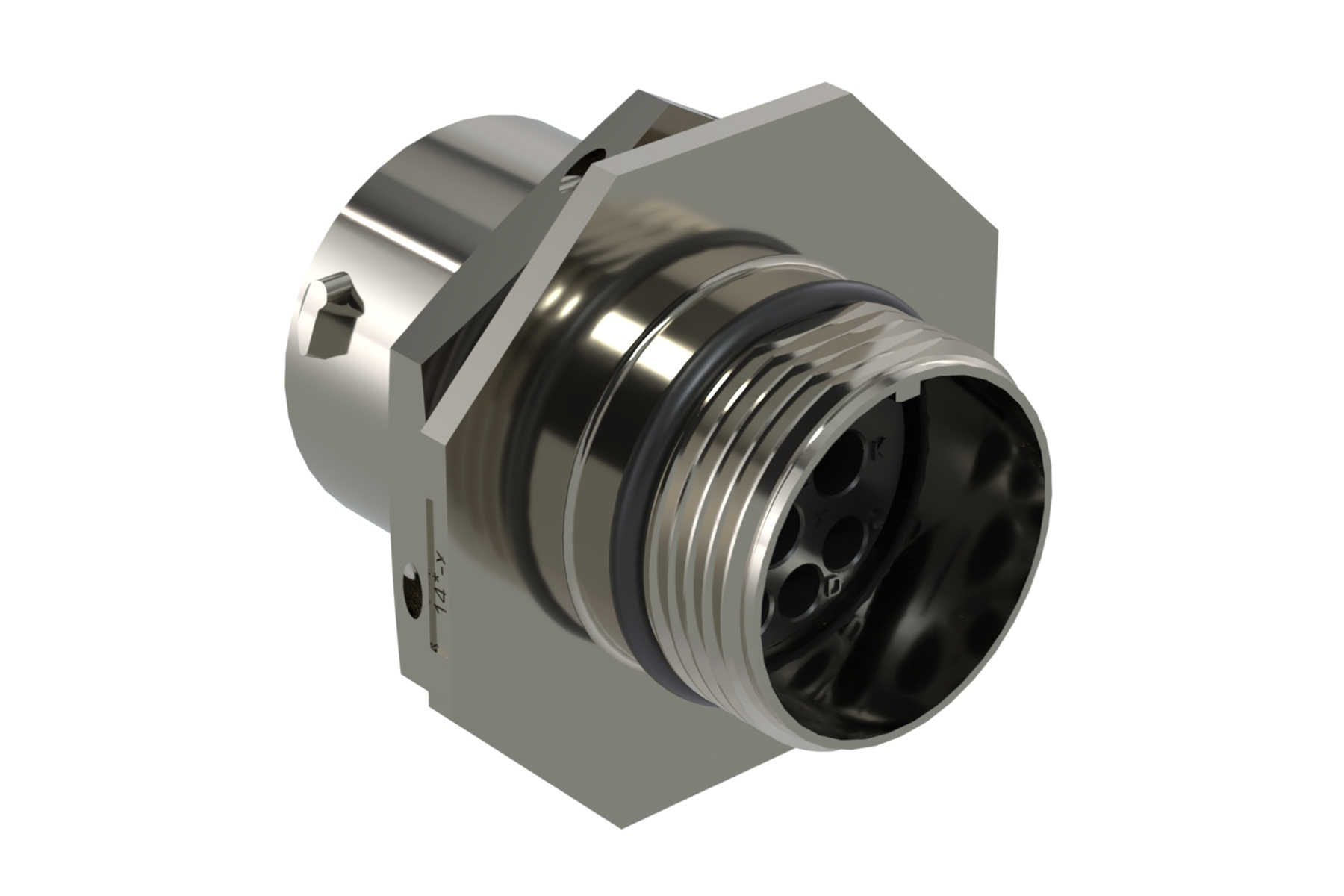

  7. RT0714E12SNH Receptacle, Jam Nut, 12 (4+8) Position, Female, Shell Size 14
RT0714E12SNH Receptacle, Jam Nut, 12 (4+8) Position, Female, Shell Size 14
RT0714E12SNH Receptacle, Jam Nut, 12 (4+8) Position, Female, Shell Size 14

RT0714E12SNH Receptacle, Jam Nut, 12 (4+8) Position, Female, Shell Size 14

$0.00
Jam Nut Receptacle
PART NUMBER: RT0714E12SNH
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Shell Size: 14
  • Number of Contacts: 12 (4+8)
  • Contact Size(s): 16,20
  • Contact Type (Pin or Socket): Socket
  • Gender: Socket
  • Wire Range: 14-24AWG (2.0-3.2mm²), 30-20 AWG (.05-.50mm²)
  • Amperage: 13A, 5A
  • Voltage: 500V
  • Housing Material: Zinc Alloy, Nickel Plated
  • IP Rating: IP67 (in mated condition)
  • Temperature Range: -40°C to +105°C
  • Rohs Compliant: Yes
  • Termination Technique: Crimp
  • Salt Spray: 48 H
  • Mating Part(s)*: RT0614E12PNH*
Receptacle, Jam Nut, 12 (4+8) Position, Female, Shell Size 14
