Home
Our Product Lines
ecomate Connectors
ecomate RM
14-12 (4+8) Position
JAM NUT RECEPTACLES

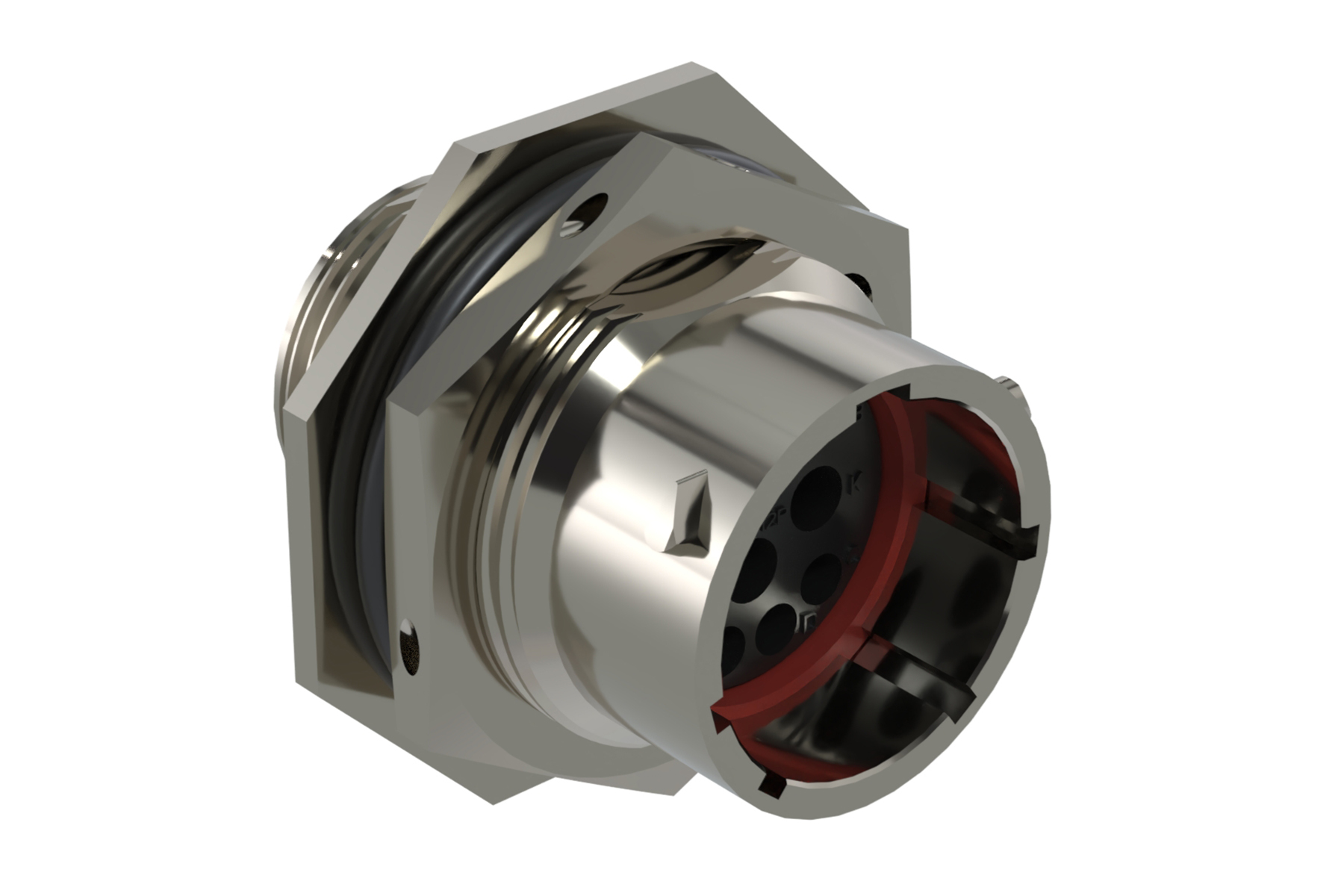

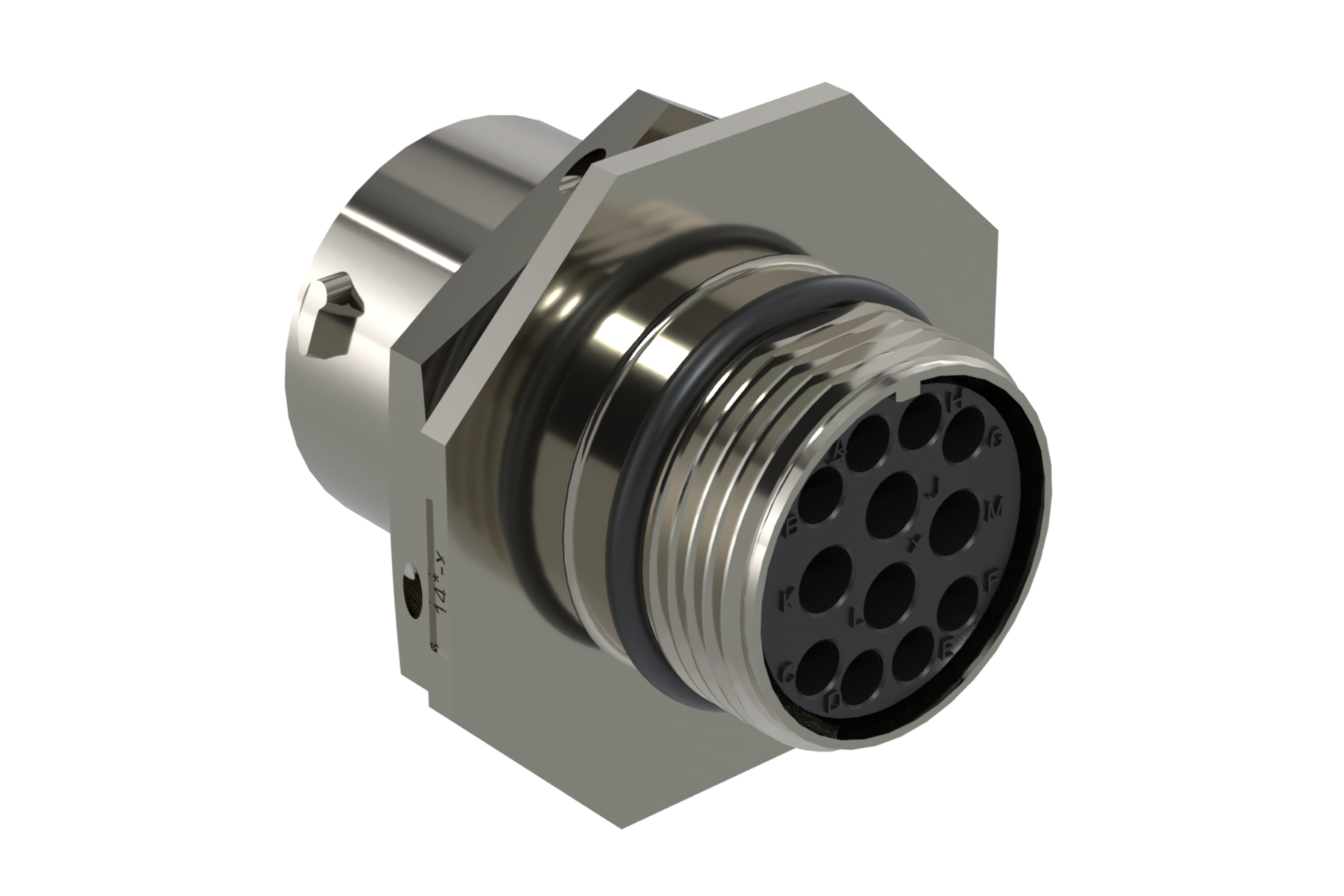

RT0714E12PNH03 Receptacle, Jam Nut, 12 (4+8) Position, Male, Shell Size 14 with Silicone Seal
RT0714E12PNH03 Receptacle, Jam Nut, 12 (4+8) Position, Male, Shell Size 14 with Silicone Seal
RT0714E12PNH03 Receptacle, Jam Nut, 12 (4+8) Position, Male, Shell Size 14 with Silicone Seal
$0.00
Jam Nut Receptacle
PART NUMBER:
RT0714E12PNH03
Datasheet
:
View / Download
12
Circular
67
13
Metal
SPECIFICATIONS:
Shell Size:
14
Number of Contacts:
12 (4+8)
Contact Size(s):
16,20
Contact Type (Pin or Socket):
Pin
Gender:
Male
Wire Range:
14-24AWG (2.0-3.2mm²), 30-20 AWG (.05-.50mm²)
Amperage:
13A, 5A
Voltage:
500V
Housing Material:
Zinc Alloy, Nickel Plated
IP Rating:
IP67 (in mated condition)
Temperature Range:
-40°C to +125°C
Rohs Compliant:
Yes
Termination Technique:
Crimp
Salt Spray:
48 H
Mating Part(s)*:
RT0614E12SNH*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Jam Nut, 12 (4+8) Position, Male, Shell Size 14 with Silicone Seal
Energy,Power,Robotics,Machine tools,Building Automation & Control,Instumentation measurement,Off Road,Mining,Railway,Telecom,Data infrastructure
EcoMate~EcoMate RM
500
Connectors~Receptacles~Jam Nut|Connectors~Pin (Male)
Related Items
MP14M23F Size 16 Pin Contact, Machined, Gold Flash, 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MP14M23G10 Size 16 Pin Contact, Machined, Gold 10µ", 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MP14M23G15 Size 16 Pin Contact, Machined, Gold 15µ", 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MP14M23G30 Size 16 Pin Contact, Machined, Gold 30µ", 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MP14M23G5 Size 16 Pin Contact, Machined, Gold 5µ", 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MP16M23F Size 16 Pin Contact, Machined, Gold Flash, 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MP16M23G10 Size 16 Pin Contact, Machined, Gold 10µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MP16M23G15 Size 16 Pin Contact, Machined, Gold 15µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MP16M23G30 Size 16 Pin Contact, Machined, Gold 30µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MP16M23G5 Size 16 Pin Contact, Machined, Gold 5µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MP16M23S Size 16 Pin Contact, Machined, Silver Plating, 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MP16M23T Size 16 Pin Contact, Machined, Tin Plating, 13A Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MP20M23F Size 16 Pin Contact, Machined, Gold Flash, 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20M23G10 Size 16 Pin Contact, Machined, Gold 10µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20M23G15 Size 16 Pin Contact, Machined, Gold 15µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20M23G30 Size 16 Pin Contact, Machined, Gold 30µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20M23G5 Size 16 Pin Contact, Machined, Gold 5µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP24M23F Size 16 Pin Contact, Machined, Gold Flash, 13A, Wire Range .14-.25mm², 24-26 AWG
REQUEST A QUOTE
MP24M23G10 Size 16 Pin Contact, Machined, Gold 10µ", 13A, Wire Range .14-.25mm², 26-24 AWG
REQUEST A QUOTE
MP24M23G15 Size 16 Pin Contact, Machined, Gold 15µ", 13A, Wire Range .14-.25mm², 26-24 AWG
REQUEST A QUOTE
MP24M23G30 Size 16 Pin Contact, Machined, Gold 30µ", 13A, Wire Range .14-.25mm², 26-24 AWG
REQUEST A QUOTE
MP24M23G5 Size 16 Pin Contact, Machined, Gold 5µ", 13A, Wire Range .14-.25mm², 26-24 AWG
REQUEST A QUOTE
RB00011914 Receptacle Dustcap without Nylon Cord, Rubber Material, Shell Size 14
REQUEST A QUOTE
RT014DCG Receptacle Dust Cap with Chain. Compatible to part # UT014DCG
REQUEST A QUOTE
RT014RL Receptacle Dust Cap Rubber with Cord Shell Size 14
REQUEST A QUOTE
RT0614E12SNH Plug, 12 (4+8) Position, Female, Shell Size 14
REQUEST A QUOTE
RT0614E12SNH03 Plug, 12 (4+8) Position, Female, Shell Size 14 with Silicone Seal
REQUEST A QUOTE
RT0714E12PNH Receptacle, Jam Nut, 12 (4+8) Position, Male, Shell Size 14
REQUEST A QUOTE
RT0B-14CG-NS1 Backshell (90°), Shell Size 14, 6.5-10.0mm
REQUEST A QUOTE
RT0B-14CG-NS2 Backshell (90°), Shell Size 14, 9.0-12.5mm
REQUEST A QUOTE
RT0L-14CG-NS1 Long Backshell (Straight), Shell Size 14 ,6.5-10.0mm
REQUEST A QUOTE
RT0L-14CG-NS2 Long Backshell (Straight), Shell Size 14, 9.0-12.5mm
REQUEST A QUOTE
RT0S-14CG-NS1 Short Backshell (Straight), Shell Size 14, 6.5-10.5mm
REQUEST A QUOTE
RT0S-14CG-NS2 Short Backshell (Straight), Shell Size 14, 9.0-12.5mm
REQUEST A QUOTE
RTFD14B Shell Size 14 Square Flange Receptacle Gaskets, Thickness 0.8mm (±0.2). Compatible to part # UTFD14B
REQUEST A QUOTE
SP14M2F Size 16 Stamped & Formed Pin Contact, Gold Flash Plating, 13A, Wire Range 16-14AWG, 3 Tangs. Reel of 3,000. Comparable to PN# SM14M1D70
REQUEST A QUOTE
SP14M2G10 Size 16 Stamped & Formed Pin Contact, Gold 10µ" Plating, 13A, Wire Range 16-14AWG, 3 Tangs. Reel of 3,000
REQUEST A QUOTE
SP14M2G15 Size 16 Stamped & Formed Pin Contact, Gold 15µ" Plating, 13A, Wire Range 16-14AWG, 3 Tangs. Reel of 3,000
REQUEST A QUOTE
SP14M2G30 Size 16 Stamped & Formed Pin Contact, Gold 30µ" Plating, 13A, Wire Range 16-14AWG, 3 Tangs. Reel of 3,000.
REQUEST A QUOTE
SP14M2G5 Size 16 Stamped & Formed Pin Contact, Gold 5µ" Plating, 13A, Wire Range 16-14AWG, 3 Tangs. Reel of 3,000
REQUEST A QUOTE
SP14M2N Size 16 Pin Contact, Stamped, Nickel, 13A, Wire Range 2.0-2.5mm², 16-14 AWG, with 3 Tangs
REQUEST A QUOTE
SP14M2T Size 16 Stamped & Formed Pin Contact, Tin Plating, 13A, Wire Range 16-14AWG, 3 Tangs. Reel of 3,000.
REQUEST A QUOTE
SP16M2F Size 16 Stamped & Formed Pin Contact, Gold Flash Plating, 13A, Wire Range 16-18AWG, 3 Tangs. Reel of 3,000
REQUEST A QUOTE
SP16M2G10 Size 16 Stamped & Formed Pin Contact, Gold 10µ" Plating, 13A, Wire Range 16-18AWG, 3 Tangs. Reel of 3,000
REQUEST A QUOTE
SP16M2G15 Size 16 Stamped & Formed Pin Contact, Gold 15µ" Plating, 13A, Wire Range 16-18AWG, 3 Tangs. Reel of 3,000
REQUEST A QUOTE
SP16M2G30 Size 16 Stamped & Formed Pin Contact, Gold 30µ" Plating, 13A, Wire Range 16-14AWG, 3 Tangs. Reel of 3,000
REQUEST A QUOTE
SP16M2G5 Size 16 Stamped & Formed Pin Contact, Gold 5µ" Plating, 13A, Wire Range 16-18AWG, 3 Tangs. Reel of 3,000
REQUEST A QUOTE
SP16M2N Size 16 Pin Contact, Stamped, Nickel, 13A, Wire Range .75-1.5mm², 18-16 AWG, with 3 Tangs
REQUEST A QUOTE
SP16M2T Size 16 Stamped & Formed Pin Contact, Tin Plating, 13A, Wire Range 16-14AWG, 3 Tangs. Reel of 3,000
REQUEST A QUOTE
SP20M2F Size 16 Stamped & Formed Pin Contact, Gold Flash Plating, 13A, Wire Range 20-22AWG, 3 Tangs. Reel of 3,000
REQUEST A QUOTE
SP20M2G10 Size 16 Stamped & Formed Pin Contact, Gold 10µ" Plating, 13A, Wire Range 20-22AWG, 3 Tangs. Reel of 3,000
REQUEST A QUOTE
SP20M2G15 Size 16 Stamped & Formed Pin Contact, Gold 15µ" Plating, 13A, Wire Range 20-22AWG, 3 Tangs. Reel of 3,000
REQUEST A QUOTE
SP20M2G30 Size 16 Stamped & Formed Pin Contact, Gold 30µ" Plating, 13A, Wire Range 20-22AWG, 3 Tangs. Reel of 3,000
REQUEST A QUOTE
SP20M2G5 Size 16 Stamped & Formed Pin Contact, Gold 5µ" Plating, 13A, Wire Range, 20-22AWG, 3 Tangs. Reel of 3,000
REQUEST A QUOTE
SP20M2N Size 16 Pin Contact, Stamped, Nickel, 13A, Wire Range .34-.50mm², 22-20 AWG, with 3 Tangs
REQUEST A QUOTE
SP20M2T Size 16 Stamped & Formed Pin Contact, Tin Plating, 13A, Wire Range 20-22AWG, 3 Tangs. Reel of 3,000.
REQUEST A QUOTE
SP24M2F Size 16 Pin Contact, Stamped, Gold Flash over Nickel, 13A, Wire Range .14-.25mm², 26-24 AWG, with 3 Tangs
REQUEST A QUOTE
SP24M2G10 Size 16 Pin Contact, Stamped, Gold 10µ" over Nickel, 13A, Wire Range .14-.25mm², 26-24 AWG, with 3 Tangs
REQUEST A QUOTE
SP24M2G15 Size 16 Pin Contact, Stamped, Gold 15µ" over Nickel, 13A, Wire Range .14-.25mm², 26-24 AWG, with 3 Tangs
REQUEST A QUOTE
SP24M2G30 Size 16 Pin Contact, Stamped, Gold 30µ" over Nickel, 13A, Wire Range .14-.25mm², 26-24 AWG, with 3 Tangs
REQUEST A QUOTE
SP24M2G5 Size 16 Pin Contact, Stamped, Gold 5µ" over Nickel, 13A, Wire Range .14-.25mm², 26-24 AWG, with 3 Tangs
REQUEST A QUOTE
SP24M2N Size 16 Pin Contact, Stamped, Nickel, 13A, Wire Range .14-.25mm², 26-24 AWG, with 3 Tangs
REQUEST A QUOTE
SP24M2T Size 16 Pin Contact, Stamped, Tin over Nickel, 13A, Wire Range .14-.25mm², 26-24 AWG, with 3 Tangs
REQUEST A QUOTE
