14-7 (3+4) Position Mix
JAM NUT RECEPTACLES

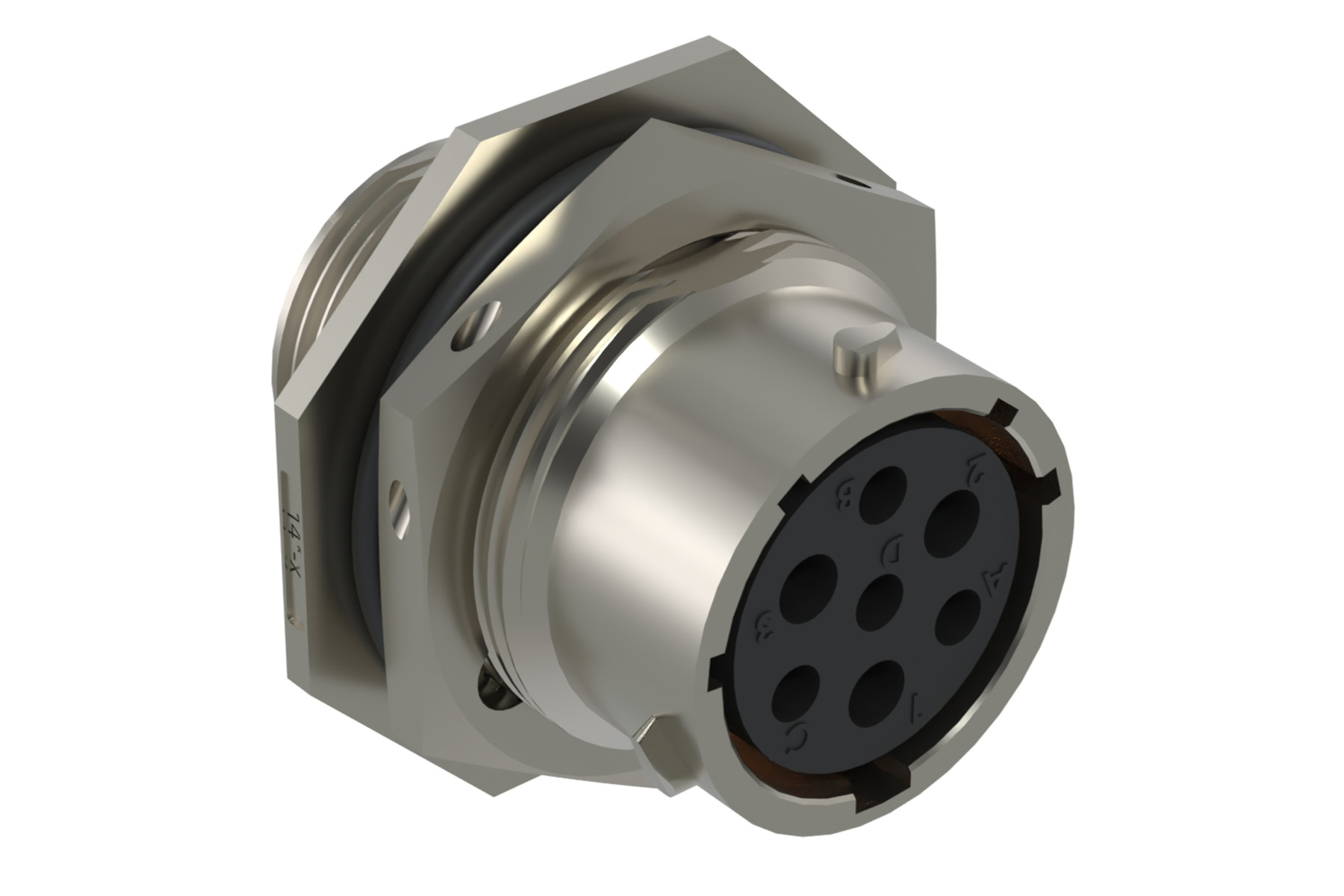

RT07143W4SNH Receptacle, Jam Nut, 7 (3+4) Position, Female, Shell Size 14. Comparable to PN# TNM7S14-0304S1L
RT07143W4SNH Receptacle, Jam Nut, 7 (3+4) Position, Female, Shell Size 14. Comparable to PN# TNM7S14-0304S1L
RT07143W4SNH Receptacle, Jam Nut, 7 (3+4) Position, Female, Shell Size 14. Comparable to PN# TNM7S14-0304S1L
$0.00
Jam Nut Receptacle
PART NUMBER:
RT07143W4SNH
Datasheet
:
View / Download
7
Circular
67
23
Metal
SPECIFICATIONS:
Shell Size:
14
Number of Contacts:
7 (3+4)
Contact Szes:
12,16
Contact Type (Pin or Socket):
Socket
Gender:
Female
Amperage:
23A,13A
Wire Range:
14-24AWG (2.0-3.2mm²), 12-14AWG (3.3-4.3mm²)
Voltage Rating:
500V
Housing Material:
Zinc Alloy, Nickel Plated
IP Rating:
IP67 (in mated condition)
Temperature Range:
-40°C to +105°C
Rohs Compliant:
Yes
Salt Spray:
48 H
Mating Part(s)*:
RT06143W4PNH*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Jam Nut, 7 (3+4) Position, Female, Shell Size 14
EcoMate~EcoMate RM
500
Connectors~Receptacles~Jam Nut|Connectors~Socket (Female)
