Home
Our Product Lines
ecomate Connectors
ecomate RM
14-3 Position
JAM NUT RECEPTACLES

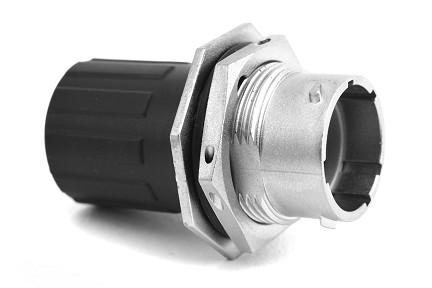

RT07143PNHEC Receptacle, Jam Nut, 3 Position, Male, Shell Size 14, End Cap with Individual Wire Sealing
RT07143PNHEC Receptacle, Jam Nut, 3 Position, Male, Shell Size 14, End Cap with Individual Wire Sealing
RT07143PNHEC Receptacle, Jam Nut, 3 Position, Male, Shell Size 14, End Cap with Individual Wire Sealing
$0.00
PART NUMBER:
RT07143PNHEC
Datasheet
:
View / Download
3D Model
:
View/Download
3
Circular
67
45
Metal
SPECIFICATIONS:
Shell Size:
14
Number of Contacts:
3
Contact Size:
#8 (3.6mm)
Amperage:
45A
Wire Range:
12-10AWG (4-6mm²)
Voltage Rating:
600
Contact Type (Pin or Socket):
Pin
Gender:
Male
Housing Material:
Zinc Alloy, Nickel Plated
IP Rating:
IP67
Temperature Range:
-40°C to +105°C
Termination Technique:
Crimp
Mating Part(s)*:
RT06143SNH*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Jam Nut, 3 Position, Male, Shell Size 14, End Cap with Individual Wire Sealing
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~EcoMate RM
600
Connectors~Receptacles~Jam Nut|Connectors~Pin (Male)
