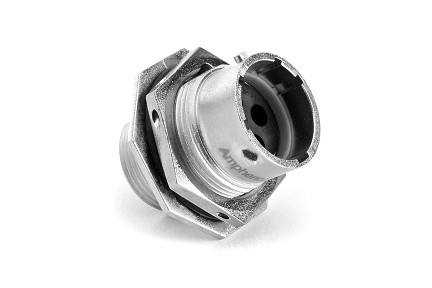

RT07124PNH03 4 Position Jam Nut Receptacle, Male, Shell Size 12 with Silicone Seal
RT07124PNH03 4 Position Jam Nut Receptacle, Male, Shell Size 12 with Silicone Seal
RT07124PNH03 4 Position Jam Nut Receptacle, Male, Shell Size 12 with Silicone Seal
$0.00
PART NUMBER:
RT07124PNH03
Datasheet
:
View / Download
3D Model
:
View/Download
4
Circular
67
13
Metal
SPECIFICATIONS:
Shell Size:
12
Number of Contacts:
4
Contact Size:
16
Amperage:
13A
Wire Range:
14-26 AWG
Voltage Rating:
500
Contact Type (Pin or Socket):
Pin
Gender:
Male
Housing Material:
Zinc Alloy, Nickel Plated
IP Rating:
IP67
Temperature Range:
-40°C to +125°C
Termination Technique:
Crimp
Mating Part(s)*:
RT06124SNH*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
4 Position Jam Nut Receptacle, Male, Shell Size 12 with Silicone Seal
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~EcoMate RM
500
Connectors~Receptacles~Jam Nut|Connectors~Pin (Male)
