Home
Our Product Lines
ecomate Connectors
ecomate RM
10-3 Position
JAM NUT RECEPTACLES

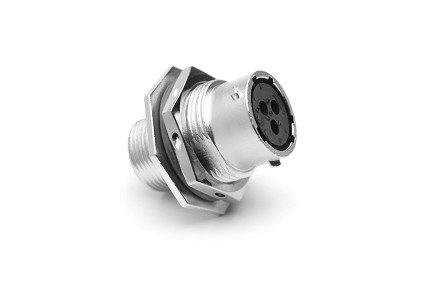

RT07103SNH Receptacle, Jam Nut, 3 Position, Female, Shell Size 10
RT07103SNH Receptacle, Jam Nut, 3 Position, Female, Shell Size 10
RT07103SNH Receptacle, Jam Nut, 3 Position, Female, Shell Size 10
$0.00
Jam Nut Receptacle
PART NUMBER:
RT07103SNH
Datasheet
:
View / Download
3D Model
:
View/Download
3
Circular
67
13
Metal
SPECIFICATIONS:
Shell Size:
10
Number of Contacts:
3
Contact Size:
16
Amperage:
13A
Wire Range:
14-26AWG
Contact Type:
Socket
Gender:
Female
Housing Material:
Zinc Alloy, Nickel Plated
IP Rating:
IP67 (in mated condition)
Temperature Range:
-40°C to +105°C
Rohs Compliant:
Yes
Insulation Resistance:
5000 MEGOHMS MIN.
Termination Technique::
Crimp
Salt Spray:
48 H
Mating Part(s)*:
RT06103PNH*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Jam Nut, 3 Position, Female, Shell Size 10
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~EcoMate RM
500
Connectors~Receptacles~Jam Nut|Connectors~Socket (Female)
Related Items
MFX-3954 Hand Tool, Stamped & Formed Contact, Size 16, 20-14AWG
REQUEST A QUOTE
MFX-3957 Crimp Die for Stamped & Formed Contact
REQUEST A QUOTE
MFX-3958 Hand Tool, Stamped & Formed Contact, Size 20, 20-28AWG
REQUEST A QUOTE
MFX-3959 Hand Tool, Machined Contacts, Size Universal
REQUEST A QUOTE
MFX-3960 Pneumatic Crimp Tool for Machined Contacts, Size Universal
REQUEST A QUOTE
MS14M23F Size 16 Socket Contact, Machined, Gold Flash, 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MS14M23G10 Size 16 Socket Contact, Machined, Gold 10µ", 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MS14M23G15 Size 16 Socket Contact, Machined, Gold 15µ", 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MS14M23G30 Size 16 Socket Contact, Machined, Gold 30µ", Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MS14M23G5 Size 16 Socket Contact, Machined, Gold 5µ", 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MS16M23F Size 16 Socket Contact, Machined, Gold Flash, 13A, Wire Range .75-1.5mm², 16-18 AWG
REQUEST A QUOTE
MS16M23G10 Size 16 Socket Contact, Machined, Gold 10µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MS16M23G15 Size 16 Socket Contact, Machined, Gold 15µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MS16M23G30 Size 16 Socket Contact, Machined, Gold 30µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MS16M23G5 Size 16 Socket Contact, Machined, Gold 5µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MS20M23F Socket Contact, Machined, Gold Flash, 13A, Wire Range .34-.50mm², 20-22 AWG
REQUEST A QUOTE
MS20M23G10 Size 16 Socket Contact, Machined, Gold 30µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MS20M23G15 Size 16 Socket Contact, Machined, Gold 30µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MS20M23G30 Size 16 Socket Contact, Machined, Gold 30µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MS20M23G5 Size 16 Socket Contact, Machined, Gold 5µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
QXRT16 Contact Extraction Tool, #16 (Ø 1.6) Contact. Compatible to part # RX2025GE1
REQUEST A QUOTE
RB00011910 Receptacle Dustcap without Nylon Cord, Rubber Material, Shell Size 10
REQUEST A QUOTE
RT010DCG Receptacle Dust Cap with Chain. Compatible to part # UT010DCG
REQUEST A QUOTE
RT010RL Receptacle Dust Cap Rubber with Cord Shell Size 10
REQUEST A QUOTE
RT06103PNH 3 Position Plug, Male, Shell Size 10. Comparable to PN# UT006103PH
REQUEST A QUOTE
RT06103PNH03 3 Position Plug, Male, Shell Size 10 with Silicone Seal
REQUEST A QUOTE
RT07103SNH Receptacle, Jam Nut, 3 Position, Female, Shell Size 10
REQUEST A QUOTE
RT07103SNH03 3 Position Jam Nut Receptacle, Female, Shell Size 10 with Silicone Seal
REQUEST A QUOTE
RT0L-10CG-S1 Long Backshell (straight). Shell Size 10, Cable Range 3.0-6.5mm
REQUEST A QUOTE
RT0L-10CG-S2 Long Backshell (straight), Shell Size 10, Cable Range 5.0-8.5mm
REQUEST A QUOTE
SS14M1G10 Size 16 Stamped & Formed Socket Contact, 10?" Gold Plating, 13A, Wire Range 14-16AWG. Reel of 3,000
REQUEST A QUOTE
SS20M1G10 Socket Contact, Size 16, Stamped, Gold 10µ", Wire Range .34-.50mm², 22-20AWG, 13A
REQUEST A QUOTE
SS20M1G30 Socket Contact, Stamped, Size 16, Gold 30µ", Wire Range .34-.50mm², 22-20AWG, 13A
REQUEST A QUOTE
SS24M1F Socket Contact, Stamped, Size 16, Gold Flash, Wire Range .14-.25mm², 26-24AWG, 13A. Compatible to part # SC24M1D70
REQUEST A QUOTE
SS24M1G10 Socket Contact, Stamped, Size 16, Gold 10µ", Wire Range .14-.25mm², 26-24AWG, 13A
REQUEST A QUOTE
SS24M1G15 Socket Contact, Stamped, Size 16, Gold 15µ", Wire Range .14-.25mm², 26-24AWG, 13A
REQUEST A QUOTE
SS24M1G30 Socket Contact, Stamped, Size 16, Gold 30µ", Wire Range .14-.25mm², 26-24AWG, 13A
REQUEST A QUOTE
SS24M1G5 Socket Contact, Stamped, Size 16Gold 5µ", Wire Range .14-.25mm², 26-24AWG, 13A
REQUEST A QUOTE
