Home
Our Product Lines
ecomate Connectors
ecomate RM
10-3 Position
JAM NUT RECEPTACLES

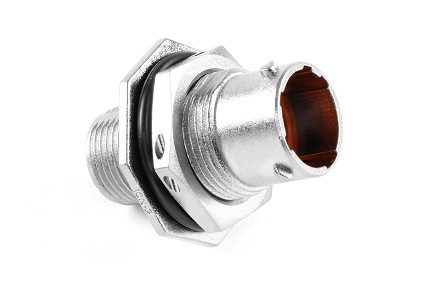

RT07103PNH03 3 Position Jam Nut Receptacle, Male, Shell Size 10 with Silicone Seal
RT07103PNH03 3 Position Jam Nut Receptacle, Male, Shell Size 10 with Silicone Seal
RT07103PNH03 3 Position Jam Nut Receptacle, Male, Shell Size 10 with Silicone Seal
$0.00
Jam Nut Receptacle
PART NUMBER:
RT07103PNH03
Datasheet
:
View / Download
3D Model
:
View/Download
3
Circular
67
13
Metal
SPECIFICATIONS:
Shell Size:
10
Number of Contacts:
3
Contact Size:
16
Amperage:
13A
Wire Range:
14-26AWG
Contact Type:
Pin
Gender:
Male
Housing Material:
Zinc Alloy, Nickel Plated
IP Rating:
IP67 (in mated condition)
Temperature Range:
-40°C to +125°C
Rohs Compliant:
Yes
Insulation Resistance:
5000 MEGOHMS MIN.
Termination Technique::
Crimp
Salt Spray:
48 H
Mating Part(s)*:
RT06103SNH*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
3 Position Jam Nut Receptacle, Male, Shell Size 10 with Silicone Seal
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~EcoMate RM
500
Connectors~Receptacles~Jam Nut|Connectors~Pin (Male)
