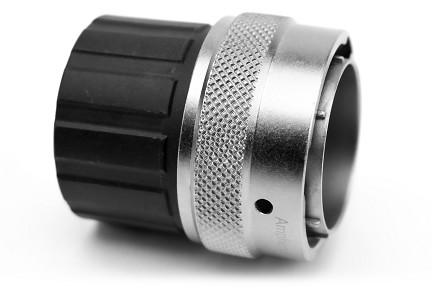

  7. RT061823SNHECR Size 18 Female, Plug, 23 positions,size 16 (1.5mm) socket contact, reduced wire seal
RT061823SNHECR Size 18 Female, Plug, 23 positions,size 16 (1.5mm) socket contact, reduced wire seal
RT061823SNHECR Size 18 Female, Plug, 23 positions,size 16 (1.5mm) socket contact, reduced wire seal

RT061823SNHECR Size 18 Female, Plug, 23 positions,size 16 (1.5mm) socket contact, reduced wire seal

$0.00
Plug
PART NUMBER: RT061823SNHECR
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Shell Size: 18
  • No. of Contacts: 23
  • Contact Size: 16
  • Contact Pin or Socket?: Socket
  • Gender: Female
  • Amperage: 13A
  • Wire Range (AWG): 14-24
  • Voltage: 500
  • Housing Material: Zinc Alloy, Nickel Plated
  • IP Rating: IP67 (in mated condition)
  • Temperature Range: -40°C to +105°C
  • Insulation Overall Diameter(min-max): Ø1.2mm - Ø2.1mm
  • Rohs Compliant?: TRUE
Plug, 23 Position, Female, Shell Size 18, and End Cap with Reduced Diameter Individual Wire Sealing, Range 14 - 24AWG

Related Items

RT001823PNH Receptacle, Square Flange, 23 Position, Male, Shell Size 18. Compatible to part # UT01823PH, 192990-1810
RT001823PNH Receptacle, Square Flange, 23 Position, Male, Shell Size 18. Compatible to part # UT01823PH, 192990-1810
REQUEST A QUOTE
RT001823PNH03 Receptacle, Square Flange, 23 Position, Male, Shell Size 18, with Silicone Seal. Compatible to part # UT001823PH
RT001823PNH03 Receptacle, Square Flange, 23 Position, Male, Shell Size 18, with Silicone Seal. Compatible to part # UT001823PH
REQUEST A QUOTE
RT001823PNHEC Square Flange Receptacle, Male, with O-ring Seal and End Cap with Individual Rear Wire Seal, 23 Contacts, Contact Size 16, 14-26AWG, 13A/500V, Shell Size 18
RT001823PNHEC Square Flange Receptacle, Male, with O-ring Seal and End Cap with Individual Rear Wire Seal, 23 Contacts, Contact Size 16, 14-26AWG, 13A/500V, Shell Size 18
REQUEST A QUOTE
RT001823PNHEC03 23 Position Square Flange Receptacle, Male, Shell Size 18, Silicone Seal, and End Cap with Individual Wire Sealing
RT001823PNHEC03 23 Position Square Flange Receptacle, Male, Shell Size 18, Silicone Seal, and End Cap with Individual Wire Sealing
REQUEST A QUOTE
RT001823PNHEC03R Size 18 Male, Square Flange Receptacle, 23 positions, size 16 (1.5mm) pin contact, reduced wire seal,silicone seal
RT001823PNHEC03R Size 18 Male, Square Flange Receptacle, 23 positions, size 16 (1.5mm) pin contact, reduced wire seal,silicone seal
REQUEST A QUOTE
RT001823PNHECR Size 18 Male, Square Flange Receptacle, 23 positions, size 16 (1.5mm) pin contact, reduced wire seal
RT001823PNHECR Size 18 Male, Square Flange Receptacle, 23 positions, size 16 (1.5mm) pin contact, reduced wire seal
REQUEST A QUOTE
RT001823PNH-K Receptacle Kit, Square Flange, 23 Position, Male, Shell Size 18, with Machined Gold Contacts, Size 16 (18-16AWG), Gasket. Compatible to part # UT001823PH
RT001823PNH-K Receptacle Kit, Square Flange, 23 Position, Male, Shell Size 18, with Machined Gold Contacts, Size 16 (18-16AWG), Gasket. Compatible to part # UT001823PH
REQUEST A QUOTE
RT061823SNH Plug, 23 Position, Female, Shell Size 18. Compatible to part # UT061823SH, 192990-1380
RT061823SNH Plug, 23 Position, Female, Shell Size 18. Compatible to part # UT061823SH, 192990-1380
REQUEST A QUOTE
RT061823SNH03 Plug, 23 Position, Female, Shell Size 18, with Silicone Seal. Compatible to part # UT061823SH
RT061823SNH03 Plug, 23 Position, Female, Shell Size 18, with Silicone Seal. Compatible to part # UT061823SH
REQUEST A QUOTE
RT061823SNHEC Plug, Female, with O-ring Seal and End Cap with Individual Rear Wire Seal, 23 Contacts, Size 16, 14-26AWG, 13A/500V, Shell Size 18
RT061823SNHEC Plug, Female, with O-ring Seal and End Cap with Individual Rear Wire Seal, 23 Contacts, Size 16, 14-26AWG, 13A/500V, Shell Size 18
REQUEST A QUOTE
RT061823SNHEC03 23 Position Plug, Female, Shell Size 18, Silicone Seal, and End Cap with Individual Wire Sealing
RT061823SNHEC03 23 Position Plug, Female, Shell Size 18, Silicone Seal, and End Cap with Individual Wire Sealing
REQUEST A QUOTE
RT061823SNHEC03R Size 18 Female, Plug, 23 positions, size 16 (1.5mm) socket contact, reduced wire seal, silicone seal
RT061823SNHEC03R Size 18 Female, Plug, 23 positions, size 16 (1.5mm) socket contact, reduced wire seal, silicone seal
REQUEST A QUOTE
RT061823SNH-K Plug Kit, 23 Position, Female, Shell Size 18, with Machined Contacts. Compatible to part # UT061823SH
RT061823SNH-K Plug Kit, 23 Position, Female, Shell Size 18, with Machined Contacts. Compatible to part # UT061823SH
REQUEST A QUOTE
RT071823PNH Receptacle, Jam Nut, 23 Position, Male, Shell Size 18. Compatible to part # UT071823PH
RT071823PNH Receptacle, Jam Nut, 23 Position, Male, Shell Size 18. Compatible to part # UT071823PH
REQUEST A QUOTE
RT071823PNH03 Receptacle, Jam Nut, 23 Position, Male, Shell Size 18, with Silicone Seal. Compatible to part # UT071823PH
RT071823PNH03 Receptacle, Jam Nut, 23 Position, Male, Shell Size 18, with Silicone Seal. Compatible to part # UT071823PH
REQUEST A QUOTE
RT071823PNHEC Jam Nut Receptacle, Male, with O-ring Seal and End Cap with Individual Rear Wire Seal, 23 Contacts, Size 16, 14-26AWG, 13A/300V, Shell Size 18
RT071823PNHEC Jam Nut Receptacle, Male, with O-ring Seal and End Cap with Individual Rear Wire Seal, 23 Contacts, Size 16, 14-26AWG, 13A/300V, Shell Size 18
REQUEST A QUOTE
RT071823PNHEC03 23 Position Jam Nut Receptacle, Male, Shell Size 18, Silicone Seal, and End Cap with Individual Wire Sealing 14-24AWG
RT071823PNHEC03 23 Position Jam Nut Receptacle, Male, Shell Size 18, Silicone Seal, and End Cap with Individual Wire Sealing 14-24AWG
REQUEST A QUOTE
RT071823PNHEC03R Size 18 Male, Jam Nut Receptacle, 23 positions, size 16 (1.5mm) pin contact, reduced wire seal,silicone seal
RT071823PNHEC03R Size 18 Male, Jam Nut Receptacle, 23 positions, size 16 (1.5mm) pin contact, reduced wire seal,silicone seal
REQUEST A QUOTE
RT071823PNHECR Size 18 Male, Jam Nut Receptacle, 23 positions, size 16 (1.5mm) pin contact, reduced wire seal
RT071823PNHECR Size 18 Male, Jam Nut Receptacle, 23 positions, size 16 (1.5mm) pin contact, reduced wire seal
REQUEST A QUOTE
RT071823PNH-K Receptacle Kit, Jam Nut, 23 Position, Male, Shell Size 18, with Machined Contacts, Size 16, 16-18AWG. Compatible to part # UT071823PH
RT071823PNH-K Receptacle Kit, Jam Nut, 23 Position, Male, Shell Size 18, with Machined Contacts, Size 16, 16-18AWG. Compatible to part # UT071823PH
REQUEST A QUOTE
SS24M1G15 Socket Contact, Stamped, Size 16, Gold 15µ
SS24M1G15 Socket Contact, Stamped, Size 16, Gold 15µ", Wire Range .14-.25mm², 26-24AWG, 13A
REQUEST A QUOTE
