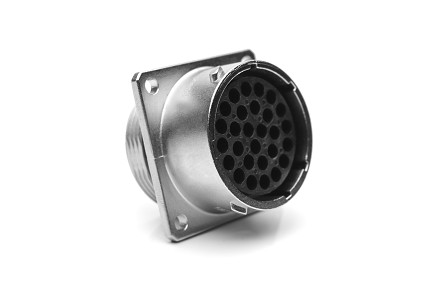

RT002238SKNH03 Square Flange Receptacle, Socket with silicone seal IP69k
RT002238SKNH03 Square Flange Receptacle, Socket with silicone seal IP69k

RT002238SKNH03 Square Flange Receptacle, Socket with silicone seal IP69k

$0.00
Receptacle
PART NUMBER: RT002238SKNH03
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Shell Size: 22
  • No.of Contacts: 38
  • Contact Size: 16
  • Contact Pin or Socket?: Socket
  • AWG: 14-26
  • Amperage: 13A
  • Housing Material: Zinc Alloy, Nickel Plated
  • IP Rating: IP67 / IP69k (in mated condition)
  • Temperature Range: -40° C to +125°C
Receptacle, Square Flange, 38 Position, Female, Shell Size 22, Silicone Seal, IP69K
