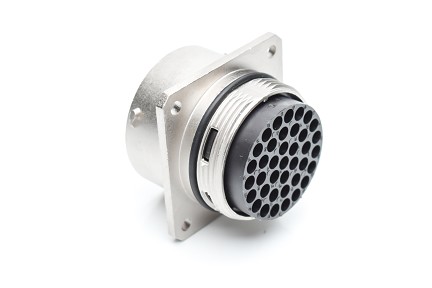

RT002235SKNH03 Receptacle, Square Flange, 35 Position, Female, Shell Size 22, Silicone Seal, IP69K

RT002235SKNH03 Receptacle, Square Flange, 35 Position, Female, Shell Size 22, Silicone Seal, IP69K

RT002235SKNH03 Receptacle, Square Flange, 35 Position, Female, Shell Size 22, Silicone Seal, IP69K

$0.00

Receptacle

PART NUMBER: RT002235SKNH03

Datasheet:

View / Download 3D Model:

View/Download

Shell Size: 22
No.of Contacts: 35
Contact Size: 16
Contact Pin or Socket?: Socket
AWG: 14-26
Amperage: 13A
Housing Material: Zinc Alloy, Nickel Plated
IP Rating: IP67 / IP69k (in mated condition)
Temperature Range: -40° C to +125°C
Voltage: 500V
Mating Part(s)*: RT062235PKNH03, RT062235SNH03SS, RT062235PNH03SS

QUANTITY

Description

Receptacle, Square Flange, 35 Position, Female, Shell Size 22, Silicone Seal, IP69K

108039122 Locking Clip with Lanyard, Shell Size 22

108039122 Locking Clip with Lanyard, Shell Size 22

REQUEST A QUOTE

CA-4020-59 Sealing Plug, White, Size 20 (1.0mm), Size 16 (1.6mm)

CA-4020-59 Sealing Plug, White, Size 20 (1.0mm), Size 16 (1.6mm)

REQUEST A QUOTE

RT022DCG Receptacle Dust Cap with Chain Shell Size 22

RT022DCG Receptacle Dust Cap with Chain Shell Size 22

REQUEST A QUOTE

RT062235PNH03SS Plug, Pin with silicone seal IP69k

RT062235PNH03SS Plug, Pin with silicone seal IP69k

REQUEST A QUOTE

RT062235SNH03SS 35 Position Plug, Socket with silicone seal IP69k

RT062235SNH03SS 35 Position Plug, Socket with silicone seal IP69k

REQUEST A QUOTE

SS24M1F Socket Contact, Stamped, Size 16, Gold Flash, Wire Range .14-.25mm², 26-24AWG, 13A. Compatible to part # SC24M1D70

SS24M1F Socket Contact, Stamped, Size 16, Gold Flash, Wire Range .14-.25mm², 26-24AWG, 13A. Compatible to part # SC24M1D70

REQUEST A QUOTE

SS24M1G5 Socket Contact, Stamped, Size 16Gold 5µ

SS24M1G5 Socket Contact, Stamped, Size 16Gold 5µ", Wire Range .14-.25mm², 26-24AWG, 13A

REQUEST A QUOTE
