Home
Our Product Lines
ecomate Connectors
ecomate RSSM
20-28 Position
SQUARE FLANGE RECEPTACLES

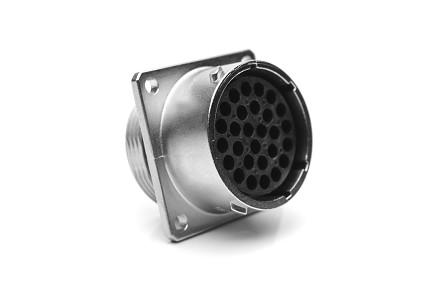

RT002028SKNH03 Square Flange Receptacle, Socket, with silicone seal IP69k
RT002028SKNH03 Square Flange Receptacle, Socket, with silicone seal IP69k
RT002028SKNH03 Square Flange Receptacle, Socket, with silicone seal IP69k
$0.00
Square Flange Receptacle, Socket, with silicone seal IP69k
PART NUMBER:
RT002028SKNH03
Datasheet
:
View / Download
3D Model
:
View/Download
28
Circular
69
13
Metal
SPECIFICATIONS:
No. of Contacts:
28
Shell Size:
20
Amperage:
3A
Contact size:
16
AWG:
14-26
Volt:
250
Contact Pin or Socket:
Socket
IP Rating:
IP67 / IP69k (in mated condition)
Housing Material:
Zinc Alloy, Nickel Plated
Temperature Range:
-40° C to +125°C
Rohs Compliant:
TRUE
Salt Spray:
>500h
Male or Female:
Female
Mating Parts:
RT062028PNH03SS,RT062028PNH03SS-K
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Square Flange, 28 Position, Female, Shell Size 20, with Silicone Seal, IP69K
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~EcoMate RM|EcoMate~EcoMate SS
250
Connectors~Receptacles~Square Flange|Connectors~Socket (Female)
