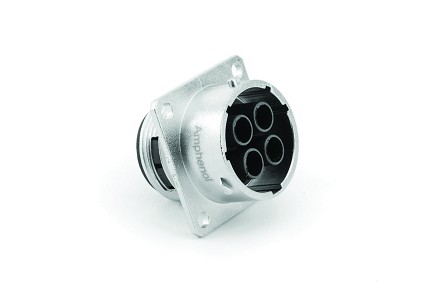

RT00164SNH03 Receptacle, Square Flange, 4 Position, Female, Shell Size 16, with Silicone Seal
RT00164SNH03 Receptacle, Square Flange, 4 Position, Female, Shell Size 16, with Silicone Seal

RT00164SNH03 Receptacle, Square Flange, 4 Position, Female, Shell Size 16, with Silicone Seal

$0.00
Square Flange Receptacle
PART NUMBER: RT00164SNH03
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Number of Contacts: 4
  • Shell Size: 16
  • Contact Size: #8 (3.6mm)
  • Amperage: 45A
  • Wire Range: 12-10AWG (4-6mm²)
  • Voltage: 600
  • Contact Pin or Socket: Socket
  • Gender: Female
  • Housing Material: Zinc Alloy, Nickel Plated
  • IP Rating: IP67 (in mated condition)
  • Temperature Range: -40°C to +125°C
  • Rohs Compliant: Yes
  • Termination Technique: Crimp
  • Salt Spray: 48 H
  • Mating Part(s)*: RT06164PNH*
Receptacle, Square Flange, 4 Position, Female, Shell Size 16, with Silicone Seal
