ecomate Connectors
ecomate RSSM
12-8 Position
SQUARE FLANGE RECEPTACLES

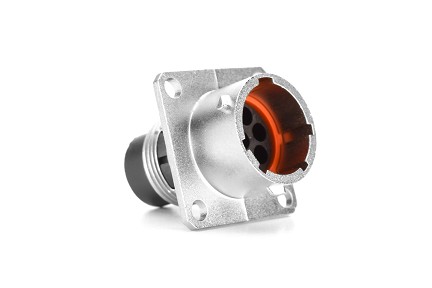

RT00128PKNH03 Receptacle, Square Flange, 8 Position, Male, Shell Size 12, Silicone Seal, IP69K
RT00128PKNH03 Receptacle, Square Flange, 8 Position, Male, Shell Size 12, Silicone Seal, IP69K
RT00128PKNH03 Receptacle, Square Flange, 8 Position, Male, Shell Size 12, Silicone Seal, IP69K
$0.00
Receptacle
PART NUMBER:
RT00128PKNH03
Datasheet
:
View / Download
3D Model
:
View/Download
8
Circular
69
13
Metal
SPECIFICATIONS:
Shell Size:
12
No.of Contacts:
8
Contact Size:
16
Contact Pin or Socket?:
Pin
AWG:
14-26
Amperage:
13A
Housing Material:
Zinc Alloy, Nickel Plated
IP Rating:
IP67 / IP69k (in mated condition)
Temperature Range:
-40° C to +125°C
Voltage:
500
Mating Parts:
RT06128SNH03SS, RT06128SNH03SS-K
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Square Flange, 8 Position, Male, Shell Size 12, Silicone Seal, IP69K
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~EcoMate RM~SuperSeal
500
Connectors~Receptacles~Square Flange|Connectors~Pin (Male)
Related Items
CA-4020-59 Sealing Plug, White, Size 20 (1.0mm), Size 16 (1.6mm)
REQUEST A QUOTE
MP14M23F Size 16 Pin Contact, Machined, Gold Flash, 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MP14M23G10 Size 16 Pin Contact, Machined, Gold 10µ", 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MP14M23G15 Size 16 Pin Contact, Machined, Gold 15µ", 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MP14M23G30 Size 16 Pin Contact, Machined, Gold 30µ", 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MP14M23G5 Size 16 Pin Contact, Machined, Gold 5µ", 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MP16M23F Size 16 Pin Contact, Machined, Gold Flash, 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MP16M23G10 Size 16 Pin Contact, Machined, Gold 10µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MP16M23G15 Size 16 Pin Contact, Machined, Gold 15µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MP16M23G30 Size 16 Pin Contact, Machined, Gold 30µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MP16M23G5 Size 16 Pin Contact, Machined, Gold 5µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MP20M23F Size 16 Pin Contact, Machined, Gold Flash, 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20M23G10 Size 16 Pin Contact, Machined, Gold 10µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20M23G15 Size 16 Pin Contact, Machined, Gold 15µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20M23G30 Size 16 Pin Contact, Machined, Gold 30µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20M23G5 Size 16 Pin Contact, Machined, Gold 5µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP24M23F Size 16 Pin Contact, Machined, Gold Flash, 13A, Wire Range .14-.25mm², 24-26 AWG
REQUEST A QUOTE
MP24M23G10 Size 16 Pin Contact, Machined, Gold 10µ", 13A, Wire Range .14-.25mm², 26-24 AWG
REQUEST A QUOTE
MP24M23G15 Size 16 Pin Contact, Machined, Gold 15µ", 13A, Wire Range .14-.25mm², 26-24 AWG
REQUEST A QUOTE
MP24M23G30 Size 16 Pin Contact, Machined, Gold 30µ", 13A, Wire Range .14-.25mm², 26-24 AWG
REQUEST A QUOTE
MP24M23G5 Size 16 Pin Contact, Machined, Gold 5µ", 13A, Wire Range .14-.25mm², 26-24 AWG
REQUEST A QUOTE
RT00128PKNH03-K Receptacle Kit, Square Flange, 8 Position, Male, Shell Size 12, Silicone Seal, with Machined Gold Contacts, Size 16 (18-16AWG), Gasket, IP69K
REQUEST A QUOTE
RT06128SNH03SS Plug, 8 Position, Female, Shell Size 12, with Silicone Seal, IP69K
REQUEST A QUOTE
RT06128SNH03SS-K Plug Kit, 8 Position, Female, Shell Size 12, Silicone Seal, with Machined Contacts, IP69K
REQUEST A QUOTE
SP14M1F Pin Contact, Stamped, Size 16, Gold Flash, Wire Range 2.0-2.5mm², 14AWG, 13A. Compatible to part # SM14M1D70, 192990-2620
REQUEST A QUOTE
SP14M1G10 Pin Contact, Stamped, Size 16, Gold 10µ", Wire Range 2.0-2.5mm², 14AWG, 13A
REQUEST A QUOTE
