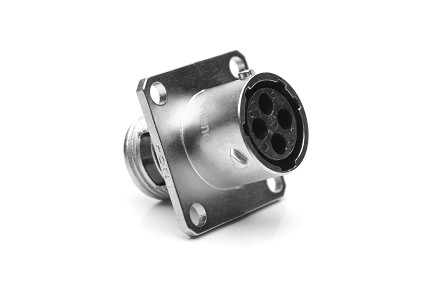

RT00104SKNH03 Square Flange Receptacle, Socket with silicone seal IP69k
RT00104SKNH03 Square Flange Receptacle, Socket with silicone seal IP69k
RT00104SKNH03 Square Flange Receptacle, Socket with silicone seal IP69k
$0.00
Receptacle
PART NUMBER:
RT00104SKNH03
Datasheet
:
View / Download
3D Model
:
View/Download
4
Circular
69
13
Metal
SPECIFICATIONS:
No. of Contacts:
4
Shell Size:
10
Amperage:
13A
Contact Size:
16
Contact Pin or Socket:
Socket
Voltage:
500
AWG:
14-26
Housing Material:
Zinc Alloy, Nickel Plated
IP Rating:
IP67 / IP69k (in mated condition)
Temperature Range:
-40° C to +125°C
Salt Spray:
48 H
Gender:
Male
Mating Parts:
RT06104PNH03SS,RT06104PNH03SS-K
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Square Flange, 4 Position, Female, Shell Size 10, Silicone Seal, IP69K
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~EcoMate RM~SuperSeal
500
Connectors~Receptacles~Square Flange|Connectors~Socket (Female)
