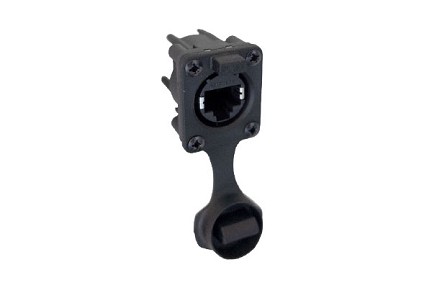

RJXS8FP16H 8 Pole Ethernet Chassis Mount, IP65 CAT6 Horizontal Panel Mount, 2.5mm to 3.8mm Panel
RJXS8FP16H 8 Pole Ethernet Chassis Mount, IP65 CAT6 Horizontal Panel Mount, 2.5mm to 3.8mm Panel

RJXS8FP16H 8 Pole Ethernet Chassis Mount, IP65 CAT6 Horizontal Panel Mount, 2.5mm to 3.8mm Panel

$0.00
Ethernet Chassis Mounts
PART NUMBER: RJXS8FP16H
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Poles: 8
  • Contact Type: Socket
  • Gender: Female
  • Current Carrying Capacity: 1.5A
  • Voltage: 125V AC
  • Termination: PCB
  • Housing Material: PA66-R10G251
  • IP Rating: IP65
  • Operating Temperature: -40°C to +80°C (-40°F to +176°F)
  • Flammability Rating: UL94V-12
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • Mating Cycles: 1000
8 Pole Ethernet Chassis Mount, IP65 CAT6 Horizontal Panel Mount, 2.5mm to 3.8mm Panel
