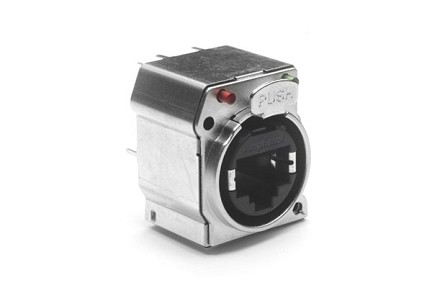

RJX8FB5VGGEB XLRnet B Type Ethernet Chassis Mount, Vertical PCB, CAT5E, Shielded, LED Indicator, Green/Green, Bulk Packaging
RJX8FB5VGGEB XLRnet B Type Ethernet Chassis Mount, Vertical PCB, CAT5E, Shielded, LED Indicator, Green/Green, Bulk Packaging
RJX8FB5VGGEB XLRnet B Type Ethernet Chassis Mount, Vertical PCB, CAT5E, Shielded, LED Indicator, Green/Green, Bulk Packaging
$0.00
Connectors
PART NUMBER:
RJX8FB5VGGEB
Datasheet
:
View / Download
8
Rectangular / Other
40
1.5
Plastic
SPECIFICATIONS:
Positions:
8
Current Carrying Capacity:
1.5A
Housing Material:
Thermoplastic, DSM Stanyl UL94V-0, 30% GF / PA66 30% GF
IP Rating:
IP40 (with EMI/RFI shield)
Finish:
Green/Green
Termination:
Printed Circuit Board (PCB) - through hole, Feedthrough, IDC Terminal
Operating Temperature:
-40°C to +80°C (-40°F to +176°F)
Voltage:
125V AC
Flammability Rating:
UL94V-0
Environmental:
Complies with EU RoHS 2 Directive 2011/65/EU
UL Certification:
UL 1863
Typical Contact Resistance:
20mΩ
Insulation Resistance:
> 500mΩ
Dielectric Strength:
1000 VAC, 60 secs
Insertion and Withdrawal Force:
< 21N
Mating Cycles:
1000
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
XLRnet B Type Ethernet Chassis Mount, Vertical PCB, CAT5E, Shielded, LED Indicator, Green/Green, Bulk Packaging
Audio & Entertainment
Audio & Entertainment~XLRnet
125
Audio~Chassis Mount
