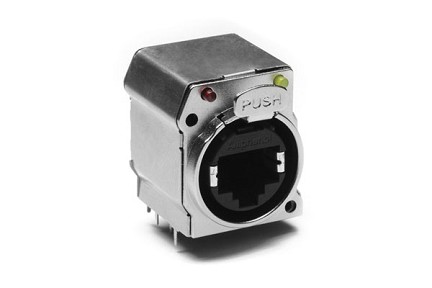

RJX8FB5HYREB XLRnet B Type Ethernet Chassis Mount, Horizontal PCB, CAT5E, Shielded, LED Indicator, Yellow/Red, Bulk Packaging
RJX8FB5HYREB XLRnet B Type Ethernet Chassis Mount, Horizontal PCB, CAT5E, Shielded, LED Indicator, Yellow/Red, Bulk Packaging

RJX8FB5HYREB XLRnet B Type Ethernet Chassis Mount, Horizontal PCB, CAT5E, Shielded, LED Indicator, Yellow/Red, Bulk Packaging

$0.00
Connectors
PART NUMBER: RJX8FB5HYREB
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Positions: 8
  • Current Carrying Capacity: 1.5A
  • Housing Material: Thermoplastic, DSM Stanyl UL94V-0, 30% GF / PA66 30% GF
  • IP Rating: IP40 (with EMI/RFI shield)
  • Finish: Yellow/Red
  • Termination: Printed Circuit Board (PCB) - through hole, Feedthrough, IDC Terminal
  • Operating Temperature: -40°C to +80°C (-40°F to +176°F)
  • Voltage: 125V AC
  • Flammability Rating: UL94V-0
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • UL Certification: UL 1863
  • Typical Contact Resistance: 20mΩ
  • Insulation Resistance: > 500mΩ
  • Dielectric Strength: 1000 VAC, 60 secs
  • Insertion and Withdrawal Force: < 21N
  • Mating Cycles: 1000
XLRnet B Type Ethernet Chassis Mount, Horizontal PCB, CAT5E, Shielded, LED Indicator, Yellow/Red, Bulk Packaging
