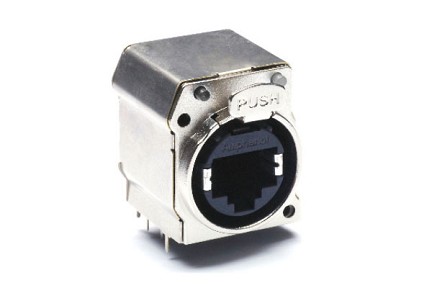

RJX8FB5HLPEB Horizontal PCB Chassis Mount RJ45 Receptacle, CAT5E XLR Ethernet, Shielded, with Light Pipe, Silver
RJX8FB5HLPEB Horizontal PCB Chassis Mount RJ45 Receptacle, CAT5E XLR Ethernet, Shielded, with Light Pipe, Silver

RJX8FB5HLPEB Horizontal PCB Chassis Mount RJ45 Receptacle, CAT5E XLR Ethernet, Shielded, with Light Pipe, Silver

$0.00
Ethernet Chassis Mounts
PART NUMBER: RJX8FB5HLPEB
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • No. of Poles: 8
  • Contact Type: Socket
  • Gender: Female
  • Contact Plating: Gold
  • Current Carrying Capacity: 12A (1.5A/contact)
  • Voltage Rating: 125V
  • Termination: Printed Circuit Board (PCB)
  • Housing Material: Thermoplastic
  • Finish: Sliver
  • IP Rating: IP40 (with EMI/RFI shield)
  • Operating Temperature: -40°C to +80°C (-40°F to +176°F)
  • Flammability Rating: UL94V-0
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • Mating Cycles: 1000
Horizontal PCB Chassis Mount RJ45 Receptacle, CAT5E XLR Ethernet, Shielded, with Light Pipe, Silver
