  7. QM2RB-AU 1/4" Phone Plug, Mono, Right Angled, Gold Plated Contacts, Black Finish
QM2RB-AU 1/4
QM2RB-AU 1/4' Phone Plug, Mono, Right Angled, Gold Plated Contacts, Black Finish

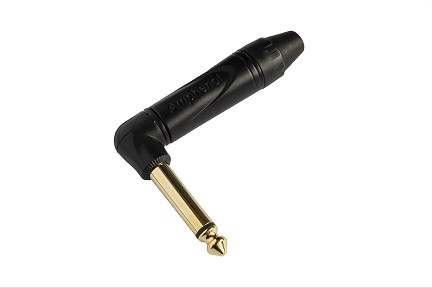

QM2RB-AU 1/4" Phone Plug, Mono, Right Angled, Gold Plated Contacts, Black Finish

$0.00
Connectors
PART NUMBER: QM2RB-AU
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Positions: 2
  • Current Carrying Capacity: 10A (Depends on Mating Connector and Cable)
  • Housing Material: Diecast Zinc Alloy EZDA No.3
  • IP Rating: IP40
  • Finish: Black
  • Termination: Solder
  • Contact Plating: Gold
  • Operating Temperature: -25°C to +75°C (-13°F to +167°F)
  • Flammability Rating: UL94V-0
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • Typical Contact Resistance: Depends on Mating Connector
  • Insulation Resistance: >1G Ω
  • Insertion and Withdrawal Force: >10N - <30N
  • Mating Cycles: 1000
1/4" Phone Plug, Mono, Right Angled, Gold Plated Contacts, Black Finish
