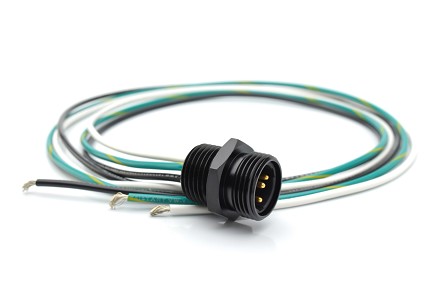

1. P31409-Mxxx M22 Source Brake Receptacle, Male, 16AWG, 1/2"NPT Thread
P31409-Mxxx M22 Source Brake Receptacle, Male, 16AWG, 1/2
P31409-Mxxx M22 Source Brake Receptacle, Male, 16AWG, 1/2'NPT Thread

P31409-Mxxx M22 Source Brake Receptacle, Male, 16AWG, 1/2"NPT Thread

$0.00
Receptacle
PART NUMBER: P31409-Mxxx
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Positions: 3
  • Amperage: 13A
  • AWG: 16AWG
  • Length: Order Custom length
  • Measurement Notes: Mxxx = length in meters
  • Voltage: 600V
  • Contacts: Copper Alloy
  • Contact Plating: 5µ" (min) Gold over 25µ" (min) Nickel
  • Protection: IP67
  • Temperature Range: -40°C to +90°C
  • Housing: Oil resistant PVC
  • Connector Face: PVC
  • Specifications: #16 AWG stranded copper (65x34)
  • wire colors: 1-Black, 2-Green/Yellow, 3-White
  • External/Internal Threads: Male External
  • Body Material: Oil resistant PVC
  • UL: TC-ER
  • Applications: Heavy Equipment, Industrial, Automation, Conveyors, Packaging machinery, Motion Control, Servo Motors, Distributed Power, Entertainment
  • Receptacle Wire Style: MTW and AWM 1015
  • Mating Cycles: >500
  • Mating Parts: P31393-Mxxx,P31445-Mxxx,P31394-Mxxx,P31395-Mxxx,P31396-Mxxx,P31398-Mxxx,P31397-Mxxx
M22 Source Brake Receptacle, Male, 16AWG, 1/2"NPT Thread
