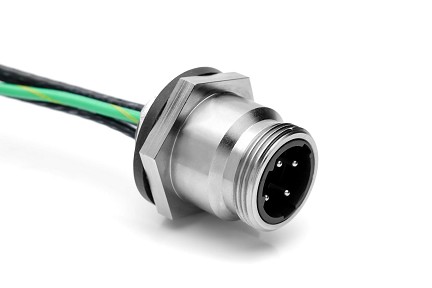

P31407-M1 M29 Power Receptacle, Male, 12AWG, 3/4 -14 NPT Th

P31407-M1 M29 Power Receptacle, Male, 12AWG, 3/4 -14 NPT Thread

$0.00

Receptacle

PART NUMBER: P31407-M1

Datasheet:

Positions: 4
Amperage: 29A
AWG: 12AWG
Length: 1 Meter
Measurement Notes: Mxxx = length in meters
Voltage: 600V
Connector Color: Gray
Contacts: Copper Alloy
Contact Plating: Gold flash
Protection: IP67 (MATED CONDITION)
Temperature Range: -40°C TO 90°C
Housing: PVC
Connector Face: PVC
wire colors: 1- Black, 2-Black, 3-Black, 4-Green Yellow
External/Internal Threads: External
Body Material: Oil resistant PVC
UL: UL 2237 LISTED ASSEMBLY. UL FILE NUMBERS: E339703
Applications: Heavy Equipment, Industrial, Automation, Conveyors, Packaging machinery, Motion Control, Servo Motors, Distributed Power, Entertainment
Insulation Insert: Thermoplastic, UL 94/V-0
Insulation Resistance: 5000MΩ
Dielectric Test Voltage: 2200V
Mating Cycles: >500
Vibration Resistance: MIL-STD-202 METHOD 204
Thermal Shock: MIL-STD-202 METHOD 207
Overmolded Material: Thermoplastic
Mating Parts: P31531-Mxxx, P31386-Mxxx, P31539-Mxxx, P31385-Mxxx, P31390-Mxxx, P31535-Mxxx, P31389-Mxxx, P31388-Mxxx, P31533-Mxxx, P31532-Mxxx, P31387-M15, P31387-M1, P31387-M2, P31387-M3, P31387-M5, P31387-M7, P31387-Mxxx, P31387-M13, P31387-M10, P31534-Mxxx, P31538-M
