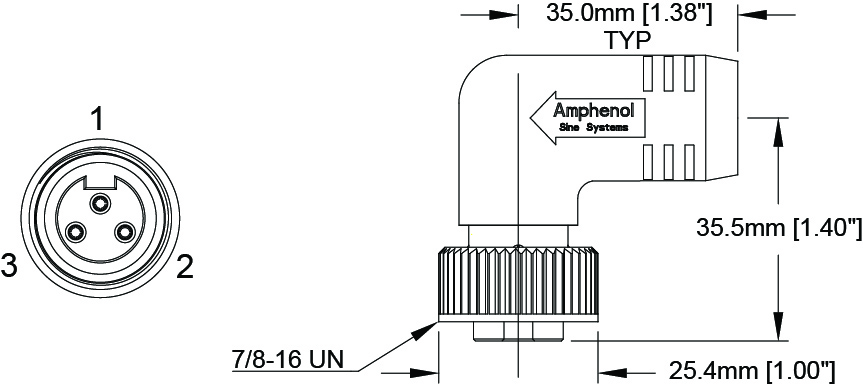

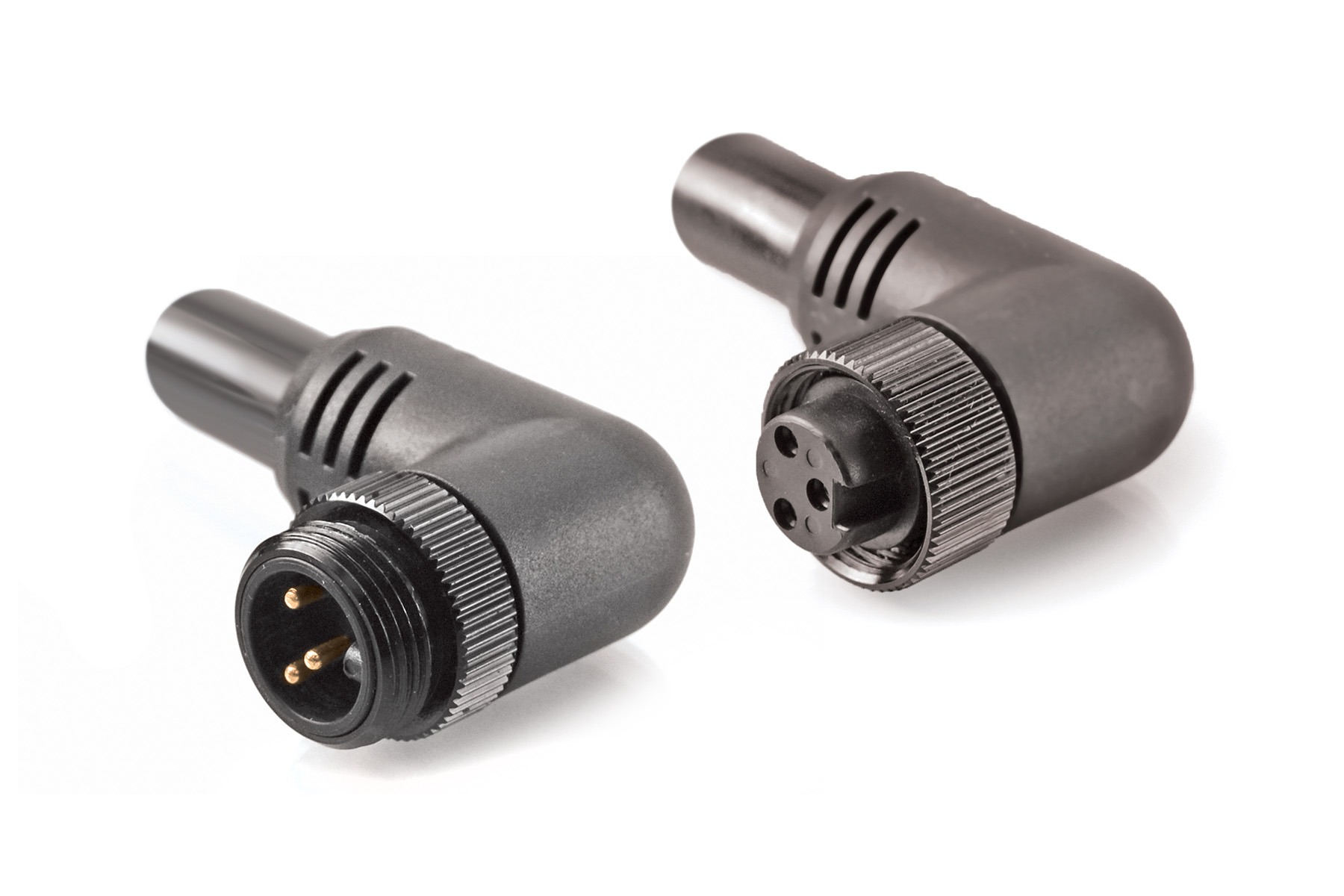

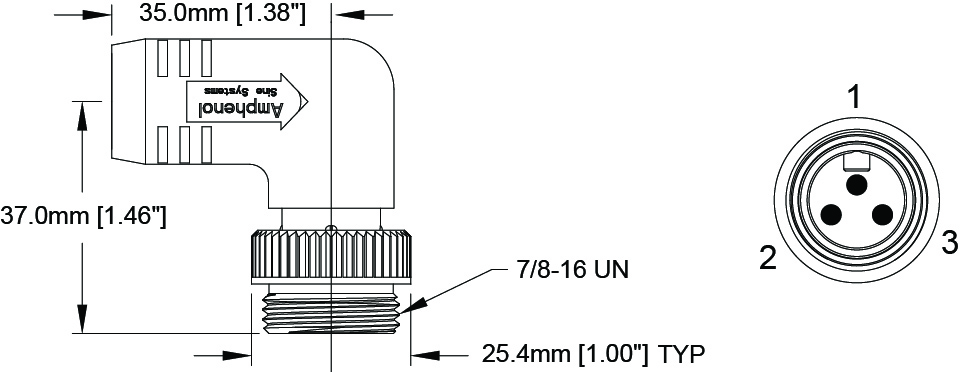

  6. P29015-Mxxx 7/8" Double-ended 3 Position Drop/Branch Cable Assembly, Male 90-Female 90, Dual-rated, Black. Comparable to part number(s): 113033A46M, WSMWKM34-*M
P29015-Mxxx 7/8
P29015-Mxxx 7/8' Double-ended 3 Position Drop/Branch Cable Assembly, Male 90-Female 90, Dual-rated, Black. Comparable to part number(s): 113033A46M, WSMWKM34-*M

P29015-Mxxx 7/8" Double-ended 3 Position Drop/Branch Cable Assembly, Male 90-Female 90, Dual-rated, Black. Comparable to part number(s): 113033A46M, WSMWKM34-*M

$0.00
3 Position - Drop/Branch
PART NUMBER: P29015-Mxxx
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Amps: 15
  • AWG: 14
  • Cable Diameter: 0.53" (13.5mm)
  • Connector Color: Black
  • Connector Face: PVC
  • Contact Plating: 5µ"(min) Gold over 25µ"
  • Contacts: Copper Alloy
  • Housing: Machined Aluminum, Anodized
  • Jacket: Black PVC
  • Positions: 3
  • Protection: IP67
  • Rating: Dual-rated
  • Specifications: stranded copper (105 x 30)
  • Temp Range: -20°C to 105°C
  • UL: TC-ER/STOOW,FT4; CSA certified type STOOW
  • Voltage: 600
7/8" Double-ended 3 Position Drop/Branch Cable Assembly, Male 90-Female 90, Dual-rated, Black. Comparable to part number(s): 113033A46M, WSMWKM34-*M
