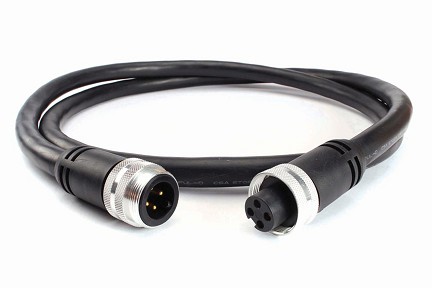

P28976-M2 1 ⅜' Double-ended 4 Position Trunk Cable Assembly, Black, 2 Meter

P28976-M2 1 ⅜" Double-ended 4 Position Trunk Cable Assembly, Black, 2 Meter

$0.00

Double-Ended Patchcord

PART NUMBER: P28976-M2

Datasheet:

View / Download

Positions: 4
Gender: Male / Female
Style: Straight
Length: 2 Meter
AWG: 10
Amperage: 32A
Voltage: 600
Cable Diameter: 0.72" (18.3mm)
Connector Color: Black
Contacts: Copper Alloy
Contact Plating: 5µ"(min) Gold over 25µ" (min) Nickel
Protection: IP67
Temperature Range: -20° to +105°
Housing: Machined Aluminum, Anodized
Connector Face: PVC
Jacket: Black PVC
Specifications: stranded copper (105 x 30)
Wire colors: 1-Black, 2-Green/Yellow, 3-Red, 4-White
External/Internal Threads: External
Rating: Dual-rated
Body Material: Oil resistant PVC
UL: TC-ER/STOOW,FT4; CSA certified type STOOW
Mating Cycles: >500

QUANTITY

Description

1 ?" Double-ended 4 Position Trunk Cable Assembly, Black, 2 Meter
