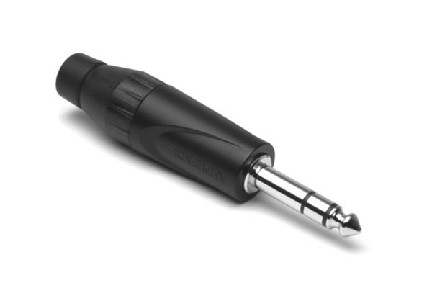

  7. JS3PB-AU 1/4" Jumbo Stereo Phone Connector, Thermoplastic Backshell, Gold Plated Contacts, Black Finish
JS3PB-AU 1/4
JS3PB-AU 1/4' Jumbo Stereo Phone Connector, Thermoplastic Backshell, Gold Plated Contacts, Black Finish

JS3PB-AU 1/4" Jumbo Stereo Phone Connector, Thermoplastic Backshell, Gold Plated Contacts, Black Finish

$0.00
1/4" Jumbo Stereo Phone Connector
PART NUMBER: JS3PB-AU
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Positions: 3
  • Current Carrying Capacity: 10A (Depends on Mating Connector and Cable)
  • Housing Material: Diecast Zinc Alloy EZDA No.3
  • Finish: Black
  • Contact Plating: Gold
  • IP Rating: IP40
  • Termination: Solder
  • Max Wire Gauge: 18AWG -1mm²
  • Operating Temperature: -25°C to +75°C (-13°F to + 167°F)
  • Mating Cycles: 1000
  • Flammability Rating: UL94V-0 or UL94-HB
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • Application(s): Audio & Lighting
1/4" Jumbo Stereo Phone Connector, Thermoplastic Backshell, Gold Plated Contacts, Black Finish
