Home
Our Product Lines
ecomate Connectors
ecomate Aquarius Fathom Lock
14-19 Position
JAM NUT RECEPTACLES

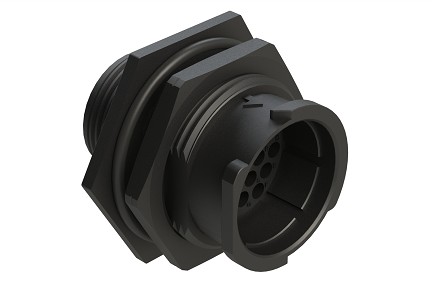

FLS714N19P03 19 Position Jam Nut Receptacle, Pin, Shell Size 14, Fast Lock Coupling
FLS714N19P03 19 Position Jam Nut Receptacle, Pin, Shell Size 14, Fast Lock Coupling
FLS714N19P03 19 Position Jam Nut Receptacle, Pin, Shell Size 14, Fast Lock Coupling
$0.00
Jam Nut Receptacle
PART NUMBER:
FLS714N19P03
Datasheet
:
View / Download
3D Model
:
View/Download
19
Circular
69
7.5
Plastic
SPECIFICATIONS:
Shell Size:
14
Number of Contacts:
19
Contact Size:
16
Amperage:
5A (stamped) or 7.5A (machined)
Wire Range (AWG):
14-26
Voltage:
250
Contact Type:
Pin
Gender:
Male
Housing Material:
Thermoplastic, UL94 V-0
IP Rating:
IP67, IP68 (1.8M) and IP69k (in mated condition)
Temperature Range:
-40°C to +125°C
Rohs Compliant:
TRUE
Resistance:
5000 MEGOHMS Min
Termination Technique::
Crimp
Mating Part(s)*:
FLS614N19S*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Jam Nut, 19 Position, Male, Shell Size 14, Silicone Seal, Auto-Lock
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Fathom Lock
250
Connectors~Receptacles~Jam Nut|Connectors~Pin (Male)
