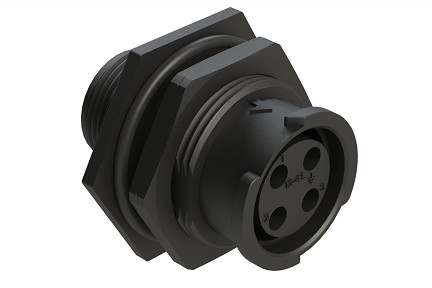

FLS712N4S03 4 Position Jam Nut Receptacle, Socket, Shell Size 12, Fast Lock Coupling
FLS712N4S03 4 Position Jam Nut Receptacle, Socket, Shell Size 12, Fast Lock Coupling

FLS712N4S03 4 Position Jam Nut Receptacle, Socket, Shell Size 12, Fast Lock Coupling

$0.00
Jam Nut Receptacle
PART NUMBER: FLS712N4S03
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Shell Size: 12
  • Number of Contacts: 4
  • Contact Size: 16
  • Amperage: 13A
  • Wire Range (AWG): 14-26
  • Voltage: 500
  • Contact Type: Socket
  • Gender: Female
  • Housing Material: Thermoplastic, UL94 V-0
  • IP Rating: IP67, IP68 (1.8M) and IP69k (in mated condition)
  • Temperature Range: -40°C to +125°C
  • Rohs Compliant: TRUE
  • Resistance: 5000 MEGOHMS Min
  • Termination Technique:: Crimp
  • Mating Part(s)*: FLS6BS12N4P*
Receptacle, Jam Nut, 4 Position, Female, Shell Size 12, Silicone Seal, Auto-Lock
