Home
Our Product Lines
ecomate Connectors
ecomate Aquarius Fathom Lock
12-10 Position
JAM NUT RECEPTACLES

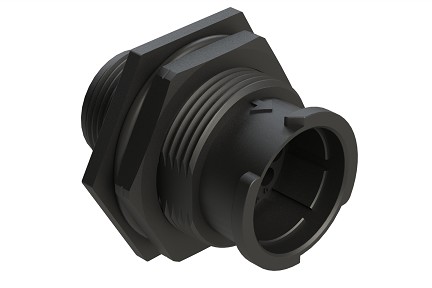

FLS712N10P03 10 Position Jam Nut Receptacle, Pin, Shell Size 12, Fast Lock Coupling
FLS712N10P03 10 Position Jam Nut Receptacle, Pin, Shell Size 12, Fast Lock Coupling
FLS712N10P03 10 Position Jam Nut Receptacle, Pin, Shell Size 12, Fast Lock Coupling
$0.00
Jam Nut Receptacle
PART NUMBER:
FLS712N10P03
Datasheet
:
View / Download
3D Model
:
View/Download
10
Circular
69
7.5
Plastic
SPECIFICATIONS:
Shell Size:
12
Number of Contacts:
10
Contact Size:
20
Amperage:
5A(stamped) or 7.5A (machined)
Wire Range (AWG):
20-30
Voltage:
250
Contact Type:
Pin
Gender:
Male
Housing Material:
Thermoplastic, UL94 V-0
IP Rating:
IP67, IP68 (1.8M) and IP69k (in mated condition)
Temperature Range:
-40°C to +125°C
Rohs Compliant:
TRUE
Resistance:
5000 MEGOHMS Min
Termination Technique::
Crimp
Mating Part(s)*:
FLS612N10S*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Jam Nut, 10 Position, Male, Shell Size 12, Silicone Seal, Auto-Lock
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Fathom Lock
500
Connectors~Receptacles~Jam Nut|Connectors~Pin (Male)
