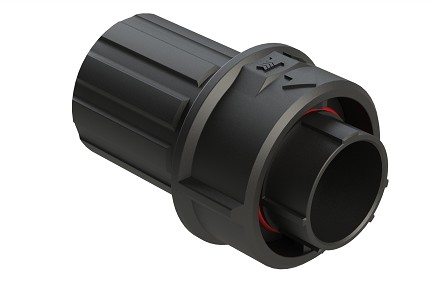

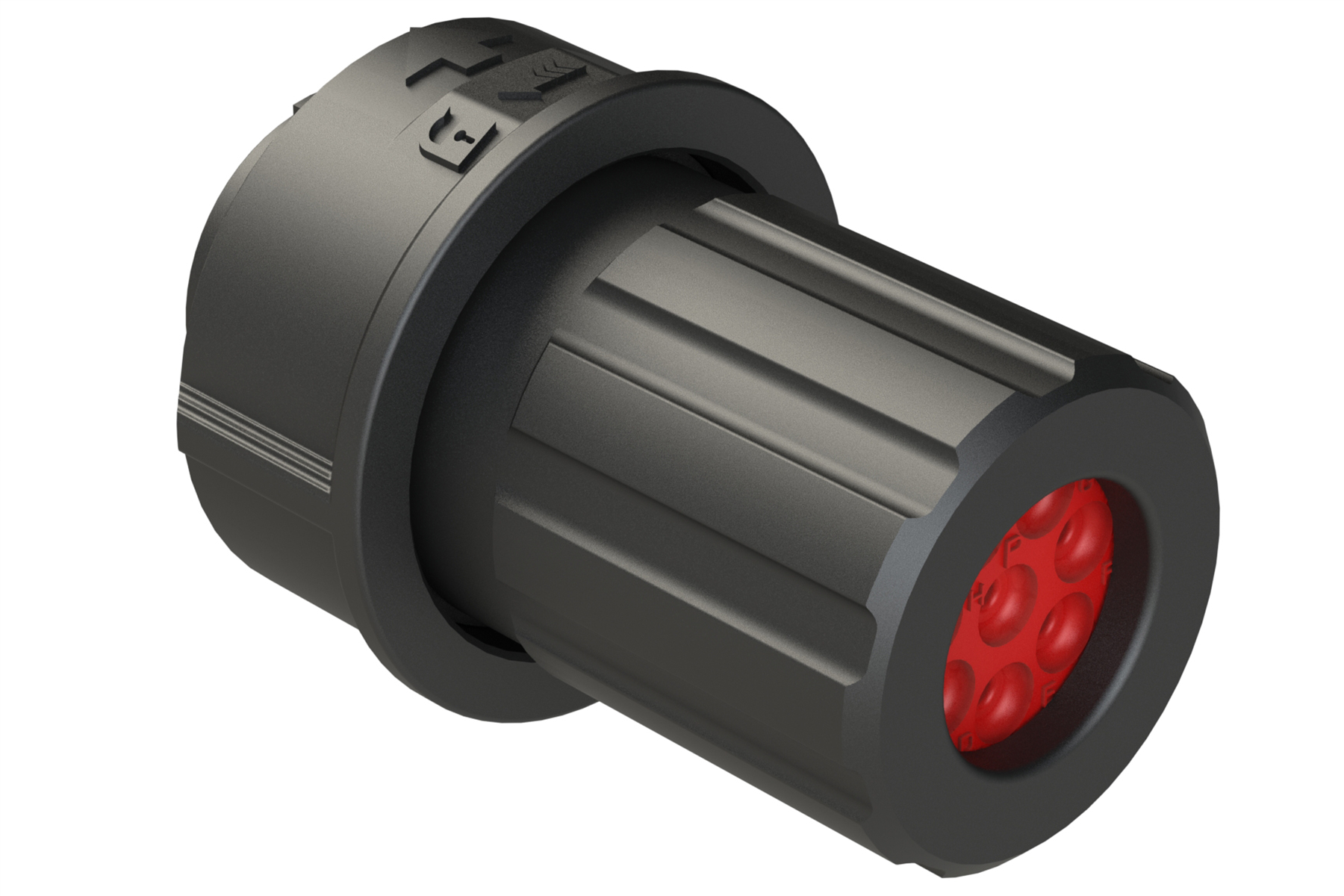

FLS612N8PHEC03 8 Position Plug, Pin, Shell Size 12, with Endcap, Fast Lock Coupling
FLS612N8PHEC03 8 Position Plug, Pin, Shell Size 12, with Endcap, Fast Lock Coupling
FLS612N8PHEC03 8 Position Plug, Pin, Shell Size 12, with Endcap, Fast Lock Coupling
$0.00
Plug
PART NUMBER:
FLS612N8PHEC03
Datasheet
:
View / Download
3D Model
:
View/Download
8
Circular
69
13
Plastic
SPECIFICATIONS:
Shell Size:
12
Number of Contacts:
8
Contact Size:
16
Amperage:
13A
Wire Range (AWG):
14-26
Voltage:
500
Contact Type:
Pin
Gender:
Male
Housing Material:
Thermoplastic, UL94 V-0
IP Rating:
IP67, IP68 (1.8M) and IP69k (in mated condition)
Temperature Range:
-40°C to +125°C
Rohs Compliant:
TRUE
Resistance:
5000 MEGOHMS Min
Termination Technique::
Crimp
Mating Part(s)*:
FLS012N8S*, FLS012N8S*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Plug, 8 Position, Male, Shell Size 12, Silicone Seal and End Cap with Individual Wire Sealing, Auto-Lock
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Fathom Lock
500
Connectors~Plugs|Connectors~Pin (Male)
